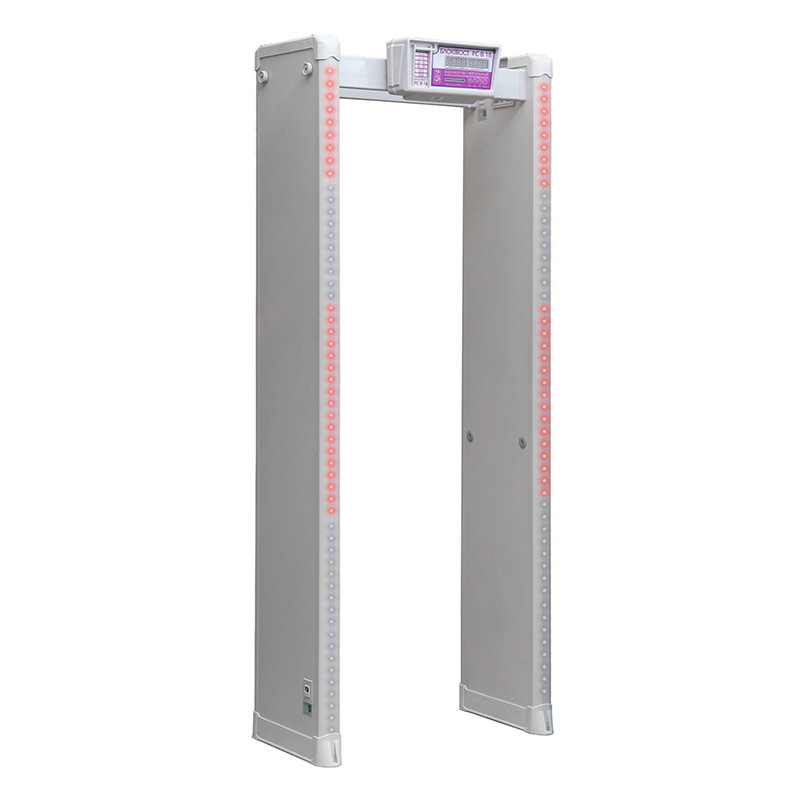

Arched metal detector BLOCKPOST PC V 18
The ultra-sensitive arched metal detector Blockpost RS V 18 is the flagship in the line of detectors presented on the Russian market. The main advantage compared to other specialized inspection devices is the ability of the detector frame to detect even the smallest metal objects weighing from 1 gram. The device detects magnetic and non-magnetic metals equally well, including microcircuit elements, jewelry, foil packaging, and more. 18 detection zones, sound and light indication on the side panels allow for precise localization of a prohibited object on the human body, which simplifies inspection and increases the throughput of the detector to 60 people per minute at maximum load. RS V 18 has high noise immunity, which allows metal detectors to be placed in parallel operation of 15 models in one row at a distance of 50 cm or more from each other.
Purpose
The metal detector BLOKPOST RS V 18 was developed for organizations with increased security requirements. It is indispensable for monitoring internal discipline at jewelry production facilities, instrument making, electrical engineering, gold mining enterprises, pharmacological laboratories, as well as FSIN institutions.
Individual packaging of the metal detector allows you to protect the device during storage and transportation to its destination. The safety of the equipment is guaranteed by double-layer cardboard boxes, foam partitions, both between the elements and the packaging; Separate packaging for each part. When transporting over long distances by transport companies, it is possible to manufacture an additional power frame from timber.
Parallel operation
When equipping the entrance area with an inspection area, RS B 18 metal detectors can be arranged either stepwise or parallel to each other in one line of 15 models each. The distance between metal detectors varies depending on the sensitivity settings for detecting prohibited items.
Operating principle
The operation of a modern ultra-sensitive metal detector is based on the use of an electromagnetic field. The use of super-strong coils in the design for each row of inspection zones allows you to adjust the sensitivity of the detector, both for the entire device as a whole and for each zone separately. Signals transmitted and received by the side antenna panels are processed by a microprocessor in the control unit and output to light display panels and a detection screen with a grid of inspection zones.
Recommended layout
A multi-zone metal detector has the ability to accurately locate one or more metal objects on the human body. This reduces inspection time and increases its accuracy and efficiency.
| External dimensions (mm) LxWxH | 2185x855x470 |
| Passage dimensions (mm) LxWxH | 2030x700x430 |
| Passage width (mm) | 700 |
| Packaging dimensions (mm) LxWxH | 2265x690x220 |
| Net weight (kg) | 44 |
| Gross weight (kg) | 52 |
| Number of independent detection zones | 18 |
| Modes | auto |
| Number of levels of overall sensitivity adjustment | 100 |
| Independent sensitivity adjustment for each zone | Yes |
| Number of sensitivity adjustment levels for each zone | 200 |
| Selectivity | Magnetic and non-magnetic metals |
| Degree of object localization | Accurate |
| Non-volatile memory for saving settings | Yes |
| Self-diagnosis test mode | Yes |
| Number of standard programs | 72 |
| Dust and waterproof housing coating | Yes |
| Pass counter | Yes |
| Maximum pass counter value | 99,999 |
| Alarm counter | Yes |
| Maximum value of alarm counters | 99,999 |
| Alarm light notification | Yes |
| Presence of LEDs in antenna panels | Yes |
| Alarm sound notification | Yes |
| Number of passwords to change settings | 1 |
| Four digit password | Yes |
| Throughput, person/min | 60 |
| Number of IR sensor trigger modes | 4 |
| Remote control | Yes |
| Number of metal detectors when used in parallel (number of operating frequencies) | 50 |
| Increased noise immunity (minimum distance between models, cm) | 100 cm |
| Operating temperature range | -20°C – +55°C |
| Power (W) | ≤ 12 W |
| Voltage (V) | 110-240V/50Hz |
| Average service life | 10 years |
| Guarantee | 1 year |
