Automotive RVU and cellular communication blocker "PELENA-7MG"
The product is designed to protect car passengers from unauthorized wiretapping using special radio devices and to prevent the detonation of radio-controlled explosive devices (RCED). The PELENA-7MG cellular and radio communication blocker is used in conditions where it is necessary to suppress high-power signals in an extended frequency range, and also requires increasing the effectiveness of protection in cellular communication ranges.
Can be used in two operating modes:
- “FULL” mode – covering a wide range of frequencies 20...2700 MHz, 5600...5900 MHz, without gaps in any parts of the protected range.
- “CELLULAR” mode – increasing the effectiveness of protection in the ranges of cellular communication networks, by reducing adjacent frequency ranges.
The PELENA-7MG automobile RVU and cellular communication blocker is placed in the trunk of a passenger car. When using the equipment, it is recommended to operate in driving mode and in a parking lot with the engine turned on, so that the car battery does not run out.
Execution options

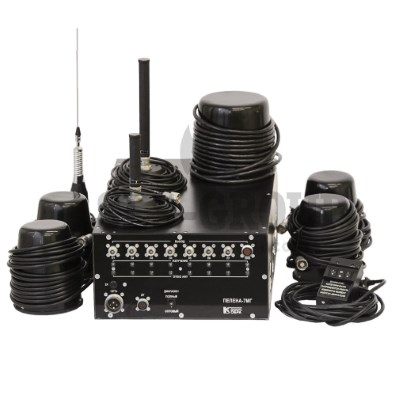

The product, in the form of a transmitter in a metal casing, is equipped with an additional lettered transmitter, eight external car antennas on magnetic bases and a remote control with a 6-meter cable. It is possible to additionally equip it with a standard gas generator.
Features of the blocker "PELENA-7MG"
- Provides effective suppression of high-power signals over a wide range of radio frequencies used by common civilian devices, including cellular communications and wireless data transmission of the Wi-Fi standard.
- Completely covers the protected frequency range (20…2700 MHz, 5600…5900 MHz), without “dips”.
- Provides the possibility of enhanced blocking of the cellular communication range. The operating modes are controlled by a toggle switch on the front panel of the transmitter.
- The remote control enhances ease of use.
Tactical and Technical Characteristics (TTX) of the PELENA-7MG blocker:
| Parameter | Meaning |
| Device type | automotive |
| Suppressed frequency range, MHz | 20…2700
5600…5900 |
| Operating time, at least one hour:
– from the on-board network - from a gas generator |
8 2 |
| Output power, not less, W | 90 |
| Supply voltage, V | 13.8 (±1.2) |
| Power consumption, no more, W | 700 |
| Weight, no more, kg | 20 |
| Overall dimensions, mm | 370 × 165 × 530 ± 10 mm |
