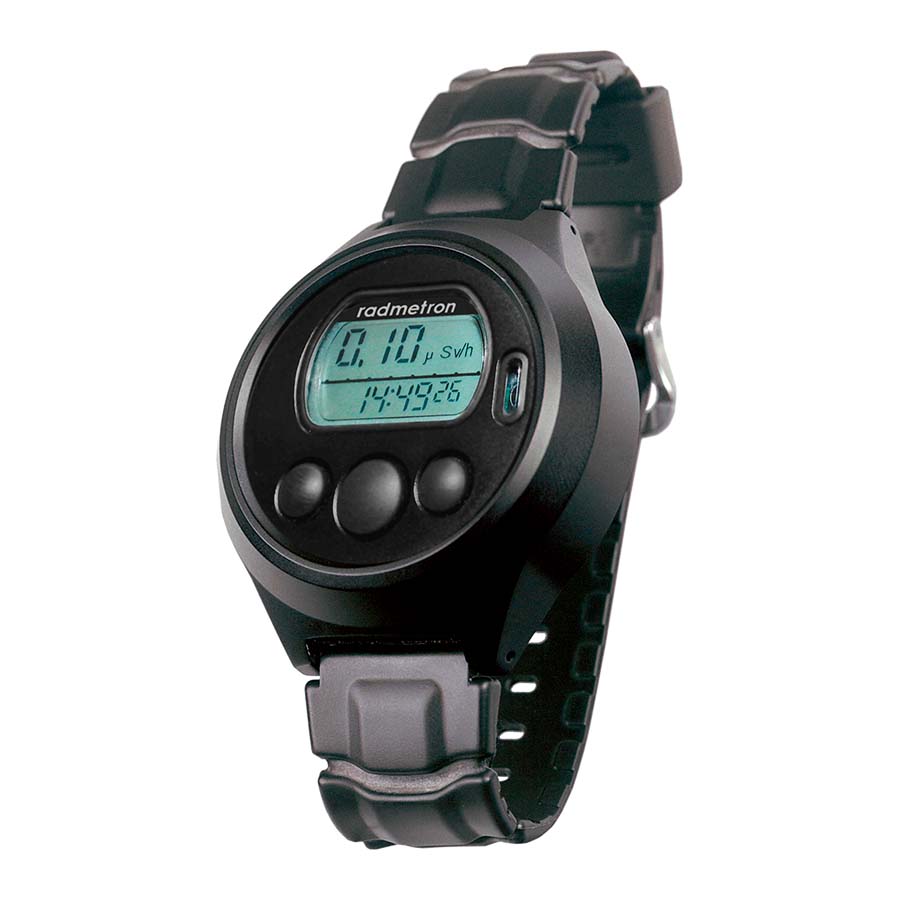

Wrist gamma radiation dosimeter DKG-RM1603A
Wrist gamma radiation dosimeter DKG-RM1603A is an innovative device designed for individual monitoring of gamma radiation levels. This wrist-mounted dosimeter is designed to provide the ease of use and portability needed to continuously monitor radiation conditions in a variety of environments.
Key Benefits
Wearing Comfort:Thanks to its wrist-worn design, the DKG-RM1603A is easy to wear all day long, providing constant background radiation monitoring.
High Measurement Accuracy:Modern gamma radiation detectors provide accurate and reliable radiation readings.
Wide Measurement Range:The instrument can effectively measure gamma radiation over a wide range, making it suitable for use in a wide range of environments.
Simplicity and Convenience of Use:The wrist dosimeter is equipped with an intuitive interface and an easy to read display.
Reliability and Durability:The device has a durable and wear-resistant housing that can withstand intensive use.
Application
The DKG-RM1603A dosimeter is ideal for specialists working in areas related to radiation safety, including environmental monitoring, industrial safety, as well as for use in scientific and medical research.
| Detector | Geiger-Muller counter |
| Dose rate measurement range | from 1.0 μSv/h to 5.0 Sv/h, H*(10) |
| Limit of permissible relative errordose rate | ± (15 + 0.02/H + 0.003H) % where H is the dose rate in mSv/h |
| Dose measurement range | 1 μSv – 9.99 Sv |
| Limit of permissible basic relativedose measurement errors | ± 15% (in the range of 1 µSv – 9.99 Sv) |
| Range of recorded energies | 0.048 – 3 MeV |
| Energy dependence of sensitivity relative to the energy 0.662 MeV (137Cs)throughout the entire range |
± 30% |
| Maintains functionality after a short period of time exposure to gamma radiation for 5 minutes is extremelypermissible dose rate: |
50 Sv/h |
| Compliance | Meets most requirements ANSI N42.33(2) and IEC 60846 |
| Alarm type | sound |
| Physical parameters | |
| Dimensions | 50 x 56 x 19 mm |
| Weight | 85 g |
| Acceptable working conditions | |
| Operating temperature range | -20 to +70 °C |
| Relative humidity | up to 98% at 35°C |
| Degree of protection of the device housing | IP67 |
| Battery Type | element CR 2032 |
| Time of continuous operation of the device from onebattery, not less | 9 months |
| Low battery indicator | pictogram on LCD |
