Integrated inspection complex SmartScan IntelliMax Trio (IntelliMax Trio)
Description
Integrated inspection complex SmartScan IntelliMax Trio - a system for comprehensive security control
SmartScan IntelliMax Trio is a high-tech security solution for sites with increased inspection requirements. The system combines several control technologies and allows you to effectively detect prohibited items, weapons, explosives and other potentially dangerous objects.
The complex is used at transport hubs, airports, train stations, administrative buildings and sensitive facilities. It provides multi-level screening of people, baggage and hand luggage, increasing the speed and accuracy of screening procedures.
It helps organize the safe passage of visitors and employees without reducing the capacity of the facility. The solution is suitable for transport infrastructure facilities, enterprises, government agencies and crowded places.
SmartScan IntelliMax inspection system
This is an innovative solution for comprehensive security of facilities, created jointly by leading companies: JSC SNT, CJSC NPC Aspect and Group of Companies Yuzhpolymetal-Holding. The system complies with the norms of anti-terrorism legislation.
The complex is a multifunctional scanning system capable of identifying threats during screening of people. The range of detected substances includes elements of firearms and bladed weapons, radioactive materials, as well as chemicals, explosives, and drugs.
Thanks to the integration of innovative detection technologies, SmartScanIntelliMax TRIO (IntelliMax Trio) provides reliable protection of objects. This solution allows customers to solve a wide range of security problems using a single inspection system.
Specifications
The system is equipped with the option of classifying radiation sources into three threat levels. At the same time, the probability of an erroneous operation is extremely small - only 0.1%.
The device can distinguish between types of metals, producing unique audio signals for ferrous and non-ferrous materials. Information about found objects is displayed on screens located on the cross beam and side panels of the installation.
The advantage of the system is the highly accurate determination of the location of detected objects. This allows for quick inspection and identification of potentially dangerous objects.
Functionality
The device can detect a wide range of hazardous compounds in the air. Detection of handicraft and industrial explosive components has been implemented - from basic initiating compounds to powerful blasting compounds. The list of substances to be determined includes: saltpeter, nitroglycerin, hexogen, TNT and other popular explosives.
The device also performs a chemical analysis of the air for the presence of narcotic substances and toxic agents. Each operating mode (search for explosives, drugs or hazardous chemicals) can be activated separately from other functions.
| Characteristic | Meaning |
| Bandwidth | At least 60 people/min |
| Metal sensitivity setting range | 1…100%, in increments of no more than 1% |
| Number of selective detection programs | At least 20 |
| Operating temperature range | +5…+40°C |
| Relative humidity | 20% to 80%, no condensation |
| Number of metal detection zones | At least 18 |
| Metal detector detection class | 4 |
| Probability of detecting metal-containing objects | more than 0.98 |
| Probability of false triggering for metal (selectivity class) | ≤ 0.02 (G) |
| Degree of object localization | Accurate |
| Independent sensitivity adjustment in 6 horizontal levels | Yes, in each level separately |
| Independent adjustment of panel sensitivity in 6 levels | Yes, in each level separately |
| Gamma radiation category | IV Pγ (see clause 2.2) |
| Probability of detection by radioactive substances | Not less than 0.95 |
| Detection limit of TNT in operating temperature and relative humidity ranges | No more than 5·10-8г |
| Detection limit of RDX, TENG, in operating temperature and relative humidity ranges | 10-7г |
| Detection limit of HMX, ammonium nitrate in operating temperature and relative humidity ranges | 10-5г |
| Average time of one procedure for the analysis of chemical substances | No more than 5 seconds |
| Time to establish the operating mode of the CW detector | No more than 30 minutes |
| Time to clean or replace the contact surface of the chemical sampling device | No more than 1 minute |
| Frequency of passage when detecting CW | No more than 1 pass per 3 seconds |
| Ethernet communication port | In stock |
| Ethernet communication protocol | TCP/IP, XML |
| Exchange of information with the system for collecting the results of technical monitoring and control using a unified protocol | In stock |
| Power supply (voltage, frequency, power) | 187 to 242 V, 50±1 Hz, 500 W |
| Alarm relay output | In stock |
| Type of electromagnetic field generation | harmonic, continuous |
| Passage dimensions, height X width | Not less than 2032x 762 mm |
| Overall dimensions, height X width X depth | No more than 2210 x 1030 x 700 mm |
| Weight | 146 kg |
| Overall dimensions in the packaging of the control unit, (length X width X height) | 810 x 550 x 210 mm |
| Overall dimensions in the packaging of side panel A, (length X width X height) | 2300 x 780 x 200 mm |
| Overall dimensions in the packaging of side panel B, (length X width X height) | 2300 x 780 x 200 mm |
| Overall dimensions in the packaging of the XB detector, (length X width X height) | 395x 245 x 245 mm |
| Package weight | 153 kg |
Key features of SmartScan IntelliMax Trio:
 Detection zones |
 Standard programs |
 Custom programs |
 When installing in a row |
 Working temperature |
 Counter visitors |
 Alarm counter |
 Digital synthesis frequencies |
 Indication on the block |
 Certificate 969 |
 Radiation control |
 Detection explosives |
 Detection narcotic substances |
 Integrated video surveillance |
 Protocol |
General device:

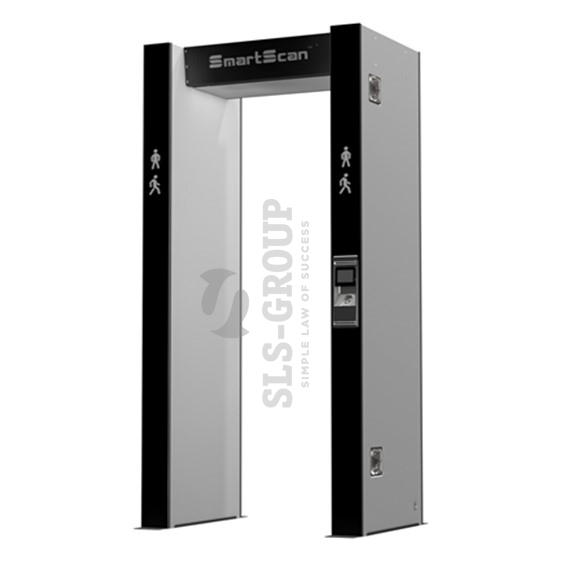

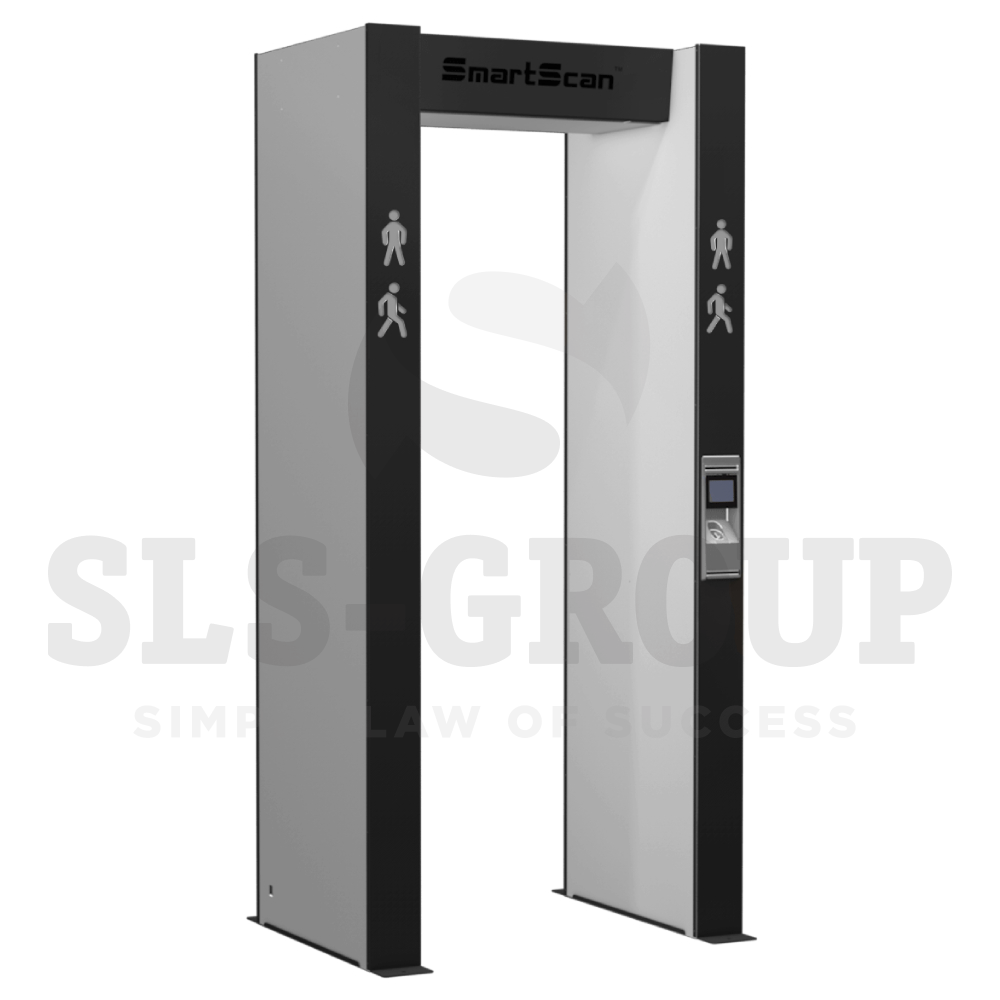

Structurally, the Complex is a stationary arch-type installation that includes devices for 3 different types of detection:
- to detect metal objects, a metal detector with a full control zone is used (hereinafter referred to as the metal detector);
- To detect radioactive substances, a special device is used - a pedestrian radiation monitor of category IV Pγ for gamma radiation (hereinafter referred to as the radiation monitor);
- To recognize traces of chemical substances on human hands, the Complex uses a built-in automatic detector for recognizing traces of chemical substances (hereinafter referred to as the chemical substance detector).

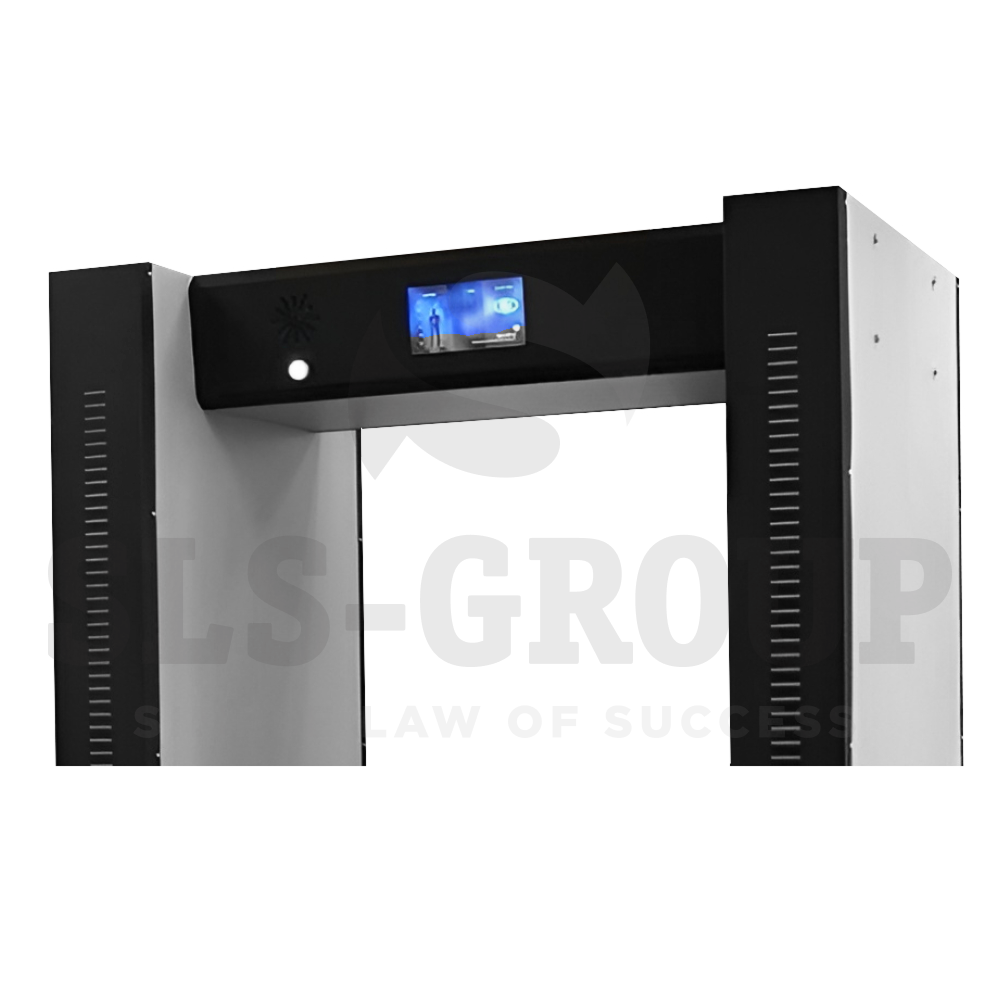

For indication and control, a touch LCD display (control display) is built into the front panel of the control unit.

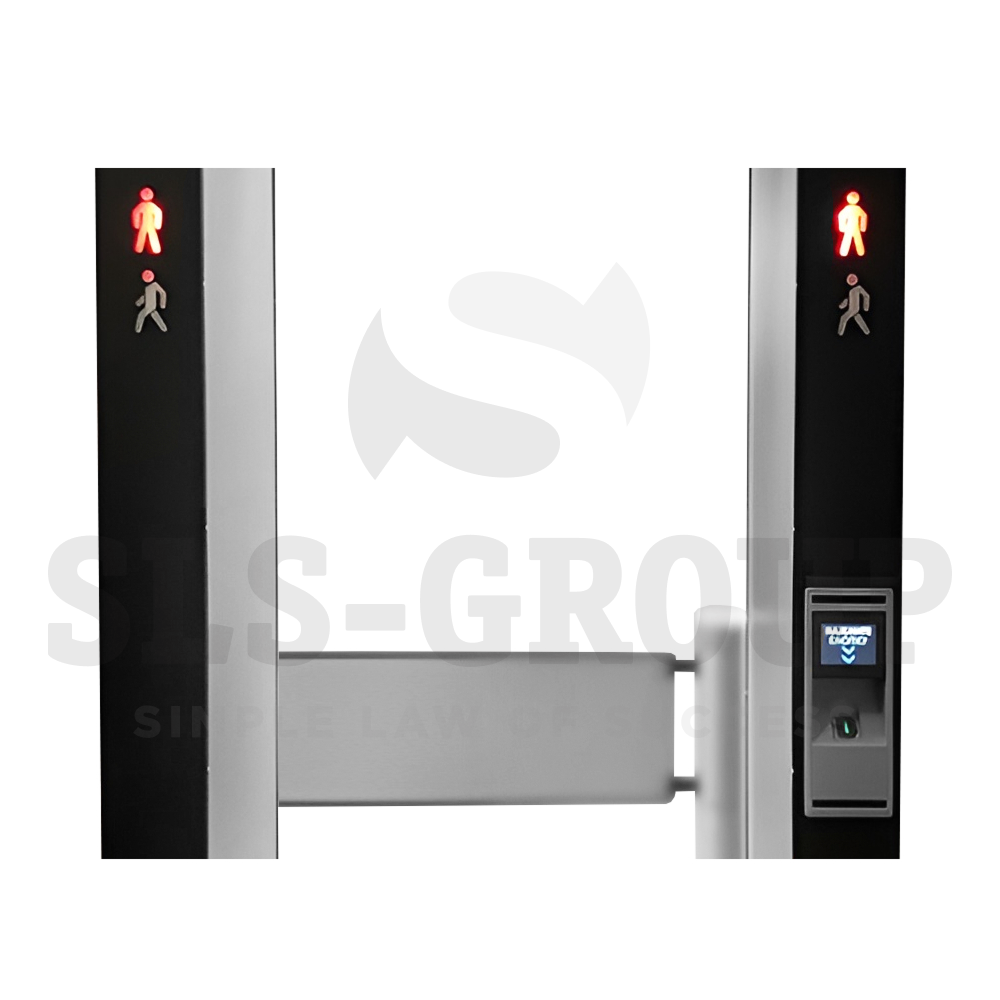

For indication, “traffic light” indicators are built into the side panels.
To count the number of visitors passing through the Complex, it has a passage counter.
To securely fix the Complex, special fastenings of its panels to the floor are used.
To supply power to the Complex, it has three identical standard connectors in different places that duplicate each other: on the cover of the control unit and at the bottom of the outer sides of each panel. This is done for the convenience of installing the Complex - whichever connector is closest to the power source in a particular place of operation, through which you can connect the power. To select one of the 3 connections, you need to connect the power cable inside the control unit to the corresponding power line, either going to one of the side panels, or to the connector in the top cover of the control unit.
Metal detector:
The metal detector components are mounted in the control unit and side panels of the Complex.
When a metal object of a certain volume moves in the detection zone (according to GOST R 53705-2009), the Complex issues light and sound signals, fixing with indicators on the front ends of the side panels and displaying the exact location of the object on the control display. The control zone is divided into 18 independent sections (3×6) - detection zones, which are displayed on the display screen. To work in various fields of application, the Complex implements 20 programs for the selective detection of metal objects.
Radiation Monitor:
The components of the radiation monitor are mounted in the control unit and side panels of the Complex. The radiation monitor detects pulses caused by gamma rays and x-rays.
Radiation monitor category according to GOST R 51635-2000 – IVПγ. The radiation monitor detects radioactive substances and standard samples of nuclear materials as they move through the controlled space of the Complex with a detection probability of no less than 0.5 with a confidence probability of 0.95. In accordance with Appendix B of GOST R 51635-2000, the activity values of sources are normalized with an error of ±30%.
Detection thresholds are standardized:
- at a natural gamma background level of no more than 0.22 μSv/h, a natural neutron radiation background level of no more than 100 neutron/(cm2);
- with a false alarm rate of no more than 0.001.
(Note - The maximum permissible gamma radiation background, at which the monitor remains operational, is 2 μSv/h. With a background above 0.22 μSv/h, the detection thresholds increase.)
The sensitivity of a radiation monitor to radiation from a radionuclide placed in a fixed position on the monitor is:
- to gamma radiation of barium-133 radionuclide – not less than 90 (imp./s)/kBq;
- to gamma radiation of the radionuclide cobalt-60 - not less than 110 (imp./s)/kBq.
The frequency of false alarms is no more than 1/1000. The change in the efficiency of registration of gamma radiation by a radiation monitor at the far boundary of the controlled space in width and in the height range is no more than ±50%.
When detecting radioactive substances with radiation above the set detection threshold in the controlled area, the radiation monitor issues a light signal and sound alarm indication, fixing the indicator on the front ends of the side panels with indicators and displaying the corresponding zone of the location of the source of ionizing radiation indicator on the control display.
HV detector:

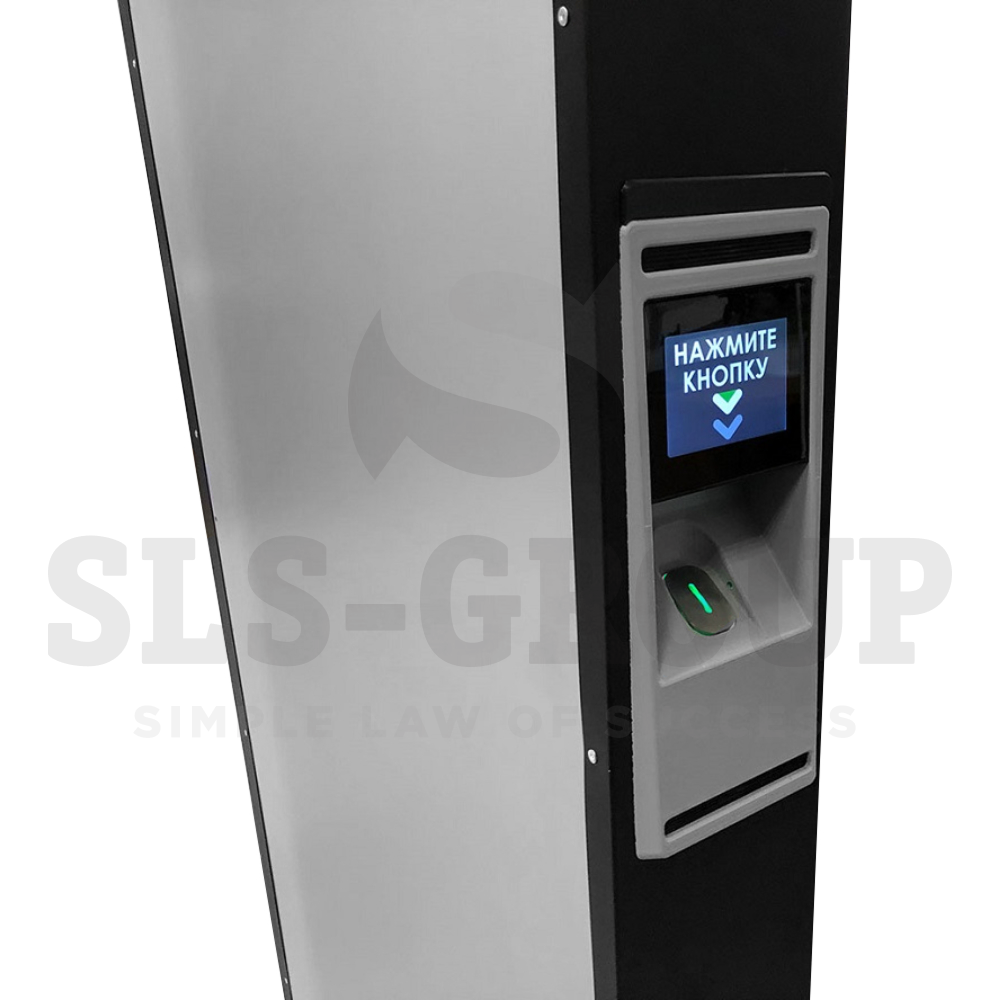

The CW detector is built into the end of the middle part of the left panel of the Complex.
The operation of the XV detector consists of the following stages:
- after a person’s finger presses the button of the sampling device (SSD), the trace left by the finger is evaporated by means of pulsed resistive heating;
- analysis of chemical substances obtained in ambient air vapors using ion mobility spectrometry;
- making a decision about the presence of traces (microparticles) of chemical substances in the resulting gas phase;
- generating an alarm and information notification, if there are traces of chemical contamination, and transmitting it to the operator of the Complex and/or to the access control and management system of the facility where the Complex is operated.
To analyze chemicals and compounds in the chemical detector, the method of ion mobility spectrometry is used.
The CW detector detects the presence and identifies the following types of CW:
- 2, 4, 6-trinitrotoluene (TNT);
- cyclotrimethylenetrinitramine (RDX);
- cyclotetramethylenetetranitramine (octogen);
- pentaerythritol tetranitrate (PETN);
- Ammonium nitrate.
The detection limit of the chemical waste detector at temperatures from +5°С to +40°С and relative humidity from 20 to 80%, when applying a substance from a human finger to the chemical protection device of the chemical waste detector, is:
- according to TNT no more than 5•10-8 g;
- for hexogen no more than 10-7 g;
- for HMX no more than 10-5 g;
- according to TEN no more than 10-7 g;
- for ammonium nitrate no more than 10-5 g.
The average time of one analysis procedure is no more than 5 seconds. The time to establish the operating mode of the chemical waste detector is no more than 30 minutes after turning on the Complex.
The time for cleaning or replacing the control surface of the sampling device if a large amount of chemicals gets on it is no more than 1 minute.
Control display:

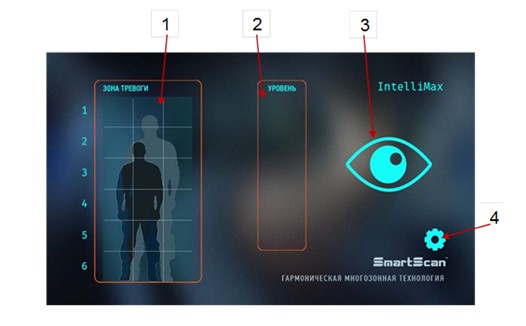

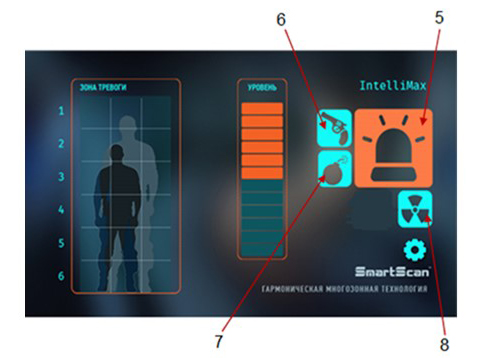

In Figures 1 and 2, the numbers indicate the display elements of the touch control display, a description of which is given below.
1– Illustrates the observation area under the arch, which is divided into 18 independent zones (3 x 6). When metal is registered in any of these zones, the square corresponding to the zone is displayed in this area of the display. Several large metal objects illuminate several squares at the same time.
2 – Индикатор текущего уровня сигнала — показывает амплитуду сигнала в области под аркой. При движении металла под аркой уровень сигнала возрастает. Если амплитуда сигнала достигает красной области, то включается сигнал тревоги.
3– Indicator of the operating status of the Complex and detected threats. In addition to the readiness state shown in Figure 1, in this area the display can display three types of threats with three corresponding icons, as well as all their possible combinations. All of these icons are numbered 5 to 8 in Figure 2, which shows the display status when all threats are present at the same time.
4– Software settings icon. Allows you to enter the menu for programming the operating modes and parameters of the Complex.
5 – Alarm indication—lights up when one or more dangerous objects and substances are carried through the Complex.
6– Indication of metal objects.
7– HB indication.
8– Indication of sources of ionizing radiation and radioactive materials.
Built-in metal detector programs:
The system must be adjusted to meet specific inspection requirements. The determination of these requirements, in accordance with which the work of the Complex is adjusted, belongs to the end user. To adjust and configure the Complex, it is recommended to use actual samples of weapons or desired items. Daily periodic checks of the subsequent operation of the Complex are possible.
The security level is determined by a combination of the following settings: specific selective detection firmware, base sensitivity, and zone sensitivity setting.
The Table presents a list of basic operating programs of the Complex, representing the wide capabilities of the product for detecting dangerous objects and substances.
Selective detection programs SmartScanIntelliMaxTrio:
| 1 | Low Threat Airport Screening Program |
| 2 | Medium Threat Airport Screening Program |
| 3 | High Threat Airport Screening Program |
| 4 | Low Threat Government Inspection Program |
| 5 | Medium Threat Government Inspection Program |
| 6 | High Threat Government Inspection Program |
| 7 | Inspection program for enterprises and transport infrastructure institutions with a low degree of danger |
| 8 | Inspection program for enterprises and transport infrastructure institutions with a medium degree of danger |
| 9 | Inspection program for transport infrastructure enterprises with a high degree of danger |
| 10 | Inspection program for public gathering places with a low degree of danger |
| 11 | Inspection program for crowded facilities with a medium degree of danger |
| 12 | Inspection program for crowded facilities with a high degree of danger |
| 13 | All metal detection program, without amplification |
| 14 | Low gain all metal detection program |
| 15 | Medium Gain All Metal Detection Program |
| 16 | High Gain All Metal Detection Program |
| 17 | Detection program with medium suppression of sensitivity to non-ferrous metals |
| 18 | Detection program with medium suppression of sensitivity to ferrous metals |
| 19 | Detection program with high sensitivity suppression for non-ferrous metals |
| 20 | Detection program with high suppression of sensitivity to ferrous metals |
Applications for SmartScan Intellimax Trio
 Airports and transport hubs The complex is actively used for screening baggage and hand luggage at airports, which helps prevent attempts to smuggle threats on board an aircraft. |
 Shopping centers and entertainment complexes The use of SmartScan in such establishments helps prevent security incidents by ensuring entry controls and enforcement of crime prevention measures. |
 Sports and public events The security screening facility provides security at major events, including concerts and sports games, by screening visitors and their personal belongings for dangerous items. |
More information about SmartScan IntelliMax Trio
Integrated inspection complex SmartScan IntelliMax Trio - purpose and capabilities
The integrated inspection complex SmartScan IntelliMax Trio is designed for comprehensive security provision at facilities with increased access control requirements. The solution combines an arch metal detector, a radiation detector and the function of detecting traces of explosives and narcotic substances in one housing.
The main purpose of using the complex is to identify dangerous objects, firearms, explosive compounds and chemical agents from a person passing through the frame. The equipment is used in airports, transport hubs, shopping centers, offices, sporting events and critical infrastructure facilities.
What's included in the SmartScan IntelliMax Trio package
The basic package includes a control unit, side panels with LED indication strips, a touch control display and built-in detection channels. The manufacturer reserves the right to change the configuration and design without prior notice.
- arched metal detector frame with 18 detection zones;
- radiation module with classification of detected sources;
- detector of traces of hazardous chemicals and explosives;
- non-volatile memory for saving settings;
- Ethernet port for interaction using the TCP/IP protocol stack;
- alarm relay output and people counter.
Optionally, integration with access control systems, video cameras, turnstiles and other elements of security systems is possible.
Key advantages of the complex
- detection and selectivity class in accordance with GOST;
- classification of detected radiation sources (including 133Ba, 137Cs, 60Co);
- localization of the detected object by zone;
- function of detecting traces of narcotic and explosive substances;
- possibility of individual adjustment of basic sensitivity;
- support for user programs;
- работа при температуре окружающей среды от +5 до +40 °C;
- maximum relative ambient humidity - up to 80%.
The complex recognizes initiating and industrial explosives: TNT, hexogen, PETN, DNT, nitroglycerin, EGDN, HMX, tetryl, trinitrophenol, ammonium nitrate (ASND), dinitronaphthalene, TATP, HMTD.
Operation, installation and maintenance
Installation of equipment is carried out by fixing the panels to the floor. Power is supplied through any of the provided connectors. Maintenance frequency is 2 times a year.
We can include installation and service in the price. If necessary, preliminary consultation with an engineer and assistance in designing passage areas are available.
Applications of SmartScan IntelliMax Trio
- airports and train stations;
- shopping and entertainment complexes;
- government agencies;
- public facilities;
- offices and corporate centers;
- sports and concert venues.
SmartScan IntelliMax Trio is professional inspection equipment to ensure the security of objects of any level. The complex is designed to detect explosives, narcotic substances, firearms and dangerous chemical agents. Thanks to high detection selectivity and precise object localization, the system minimizes false alarms. The equipment is suitable for transport infrastructure facilities, government agencies and commercial centers in Moscow and regions of the Russian Federation.
How to order SmartScan IntelliMax Trio
Price available on request. To receive a commercial offer, fill out the order form or contact us in a way convenient for you. The sales manager will contact you at the specified phone number.
- selection of equipment for the object’s tasks;
- cost calculation;
- preparation of documentation for the Russian Federation and government procurement;
- manufacturer's warranty;
- delivery in Moscow and regions;
- assistance to the buyer at all stages.
Important:Specifications may be changed by the manufacturer. Before purchasing, we recommend checking the parameters with the manager.
FAQ
Is it possible to integrate the complex into an existing security system?
Yes, SmartScan IntelliMax Trio supports interaction over a local Ethernet network and can work in conjunction with access control systems, video surveillance and automated systems.
What's the throughput?
Up to 60 people per minute while maintaining detection accuracy.
Is certification provided?
The complex has a certificate of conformity and is suitable for facilities with increased safety requirements.
