Pilot-M

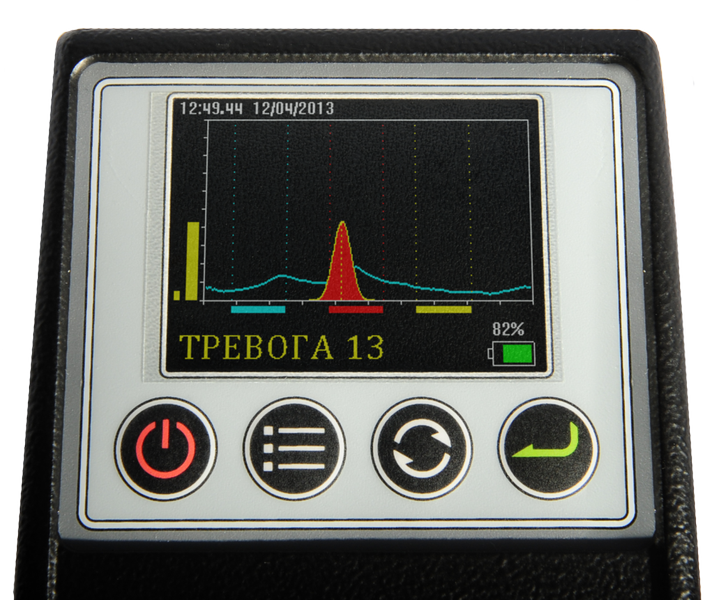

Portable vapor detector "Pilot M"
Gas analyzers "Pilot M" are used for automatic detection of traces of explosive substances (explosives). The device detects explosive particles in the air or on the surface. These products are used to ensure safety. The detectors combine ease of operation and a wide range of detected substances.
Functionality "Pilot M"
A portable explosive vapor detector detects traces on site:
- trinitrotoluene;
- nitroglycerin;
- hexogen;
- pentaerythritol tetranitrate.
The Pilot M explosives detector is a small cast block with a convenient carrying handle. The user takes samples from the surface or air, and then the particles caught for analysis are automatically recognized. As a result, the user receives a detailed analysis of samples for the content of explosive particles.
The Pilot M explosive gas analyzer comes complete with a heating device, which expands the analysis capabilities, since when heated, most of the explosives change their state to gaseous. It is convenient to take samples from the surface using napkins, which come complete with the Pilot explosives detector. After taking the sample, the wipe is placed in the device, where it heats up and the particles break down. It is also possible to collect samples without using wipes through a mesh concentrator.
The Pilot M detector is equipped with built-in software that compares samples with a database, so errors during analysis are excluded. The database contains indicators of pure explosives, as well as mixtures.
The manufacturer constantly monitors the updating of the database of the Pilot M explosive vapor detector so that users receive up-to-date information. When improving the software, developers also take into account the wishes of customers, collecting feedback on the official website.
Unlike other vapor detectors, the Pilot M explosive detector is completely safe for the user and the environment. There are no isotope radiation sources in the composition, and the impact-resistant housing is protected from accidental damage. There are no restrictions on disposal or storage of the device.
Peculiarities:
- high sensitivity;
- high selectivity;
- extensive database;
- constantly updated software;
- the ability to independently regulate the threshold for determining explosives.
Purpose "Pilot M"
The vapor detector enables the operator to detect traces of explosives in non-laboratory environments. The kit includes a remote sampler, which is used to take samples of explosive vapors in smoky or dusty rooms.
You can order the Pilot M detector from SLS-GROUP LLC.
Scope of delivery:
- Explosive vapor detector (main unit) – 1 pc.
- Explosive simulator (test sample) – 1 pc.
-Sample heating device – 1 pc.
-Sampling device – 1 pc.
-Metal mesh concentrator – 3 pcs.
-Special (sampling) napkin – 30 pcs.
-Network adapter – 1 pc.
- Charger - 1 pc.
-Charger power cable – 1 pc.
-Battery – 2 pcs.
-Tweezers – 1 pc.
-Transport suitcase – 1 pc.
-Operating instructions – 1 pc.
Performance characteristics (TTX): Pilot-M
| Sensitivity | Up to 1.0 10-13g/cm3 |
| Ionization source | Drift spectrometer |
| Dimensions | 300x270x90 mm |
| Weight with battery | No more than 2.0kg |
| Database of inspected (detected) substances | Constantly updated, it is possible to create an individual database for the customer’s tasks |
| Response time for explosives | Less than 1 sec. |
| Ready time after switching on | Less than 10 sec. |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
