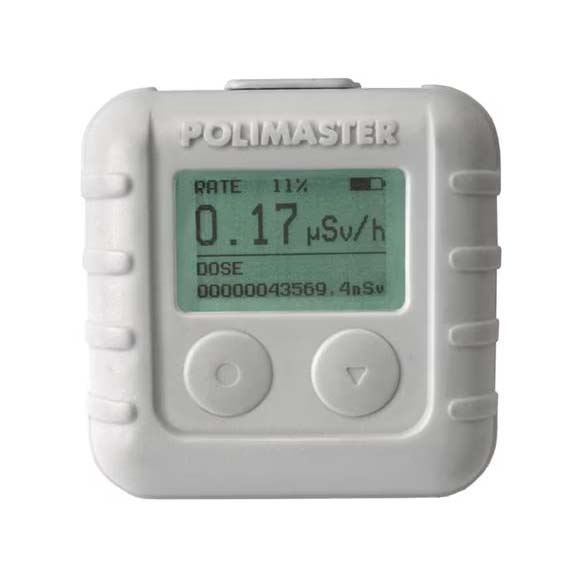

Individual dosimeter Polimaster DKG-RM1610
Individual dosimeter Polimaster DKG-RM1610 is a modern and high-tech device designed for continuous monitoring of gamma radiation levels. Developed by Polimaster, this personal dosimeter combines advanced technology and ease of use, making it an ideal choice for a wide range of users.
Key Benefits
Accuracy and Reliability:The DKG-RM1610 is equipped with sensitive detectors that provide highly accurate measurements of gamma radiation levels.
Compact and Portable:The small size and light weight make the dosimeter comfortable to wear, allowing the user to constantly monitor background radiation.
Ease of Use:The intuitive interface and clear display make it easy to use, even for those new to radiation measurements.
Durability and Reliability:The device is designed to operate in harsh environments, including extreme temperatures and humidity.
Multifunctionality:In addition to measuring background radiation, the dosimeter also provides data on accumulated radiation doses, which is especially important for professional use.
Application
The Polimaster DKG-RM1610 dosimeter is widely used by specialists in the field of radiation safety, ecology, medicine and scientific research. It is also suitable for personal use by persons working or living in areas with high levels of background radiation.
| Detector | Geiger-Muller counter |
| DER measurement | from 0.1 μSv/h to 10.0 Sv/h |
| Limit of permissible relative error dose rate |
±(15+0.0015/H)% (in the range 0.1 µSv/h – 10 Sv/h, where H – dose rate in mSv/h) |
| ED measurement range | continuous photon radiation: from 0.05 µSv to 10 Sv pulsed photon radiation: from 10 µSv to 10 Sv |
| Limit of permissible basic relative dose measurement errors |
± 20% |
| Range of recorded energies | from 0.02 to 10.0 MeV |
| Energy dependence of sensitivity relative to energy 0.662 MeV (137Cs) throughout the entire range |
-60% from 20 keV to 33 keV -40% from 33 keV to 48 keV ±30% from 48 keV to 3 MeV ±50% from 3 MeV to 10 MeV |
| Maintains functionality after a short period of time exposure to gamma radiation for 5 minutes is extremely permissible dose rate: |
100 Sv/h |
| Degree of protection of the device housing | IP65 |
| The device is resistant to drops on concrete floors from above |
1.5 m on hard wood surface |
| Alarm type | visual, sound, vibration |
| PC connection | USB, ISO15693 interface (for 01 models) |
| Device power | |
| Battery Type | built-in battery (charge battery powered by USB) |
| Low battery indicator | LCD indication |
| Time of continuous operation of the device from one battery, (with an average DER value of no more than 0.3 µSv/h, and using backlight, sound, light and vibration alarm – no more than 20 s/day) no less |
30 days |
| Physical parameters | |
| Dimensions | 58 x 59 x 20 mm |
| Weight | 70 g |
| Acceptable working conditions | |
| Operating temperature range | -20 to +50 °C |
| Relative humidity | up to 98% at 35°C |
