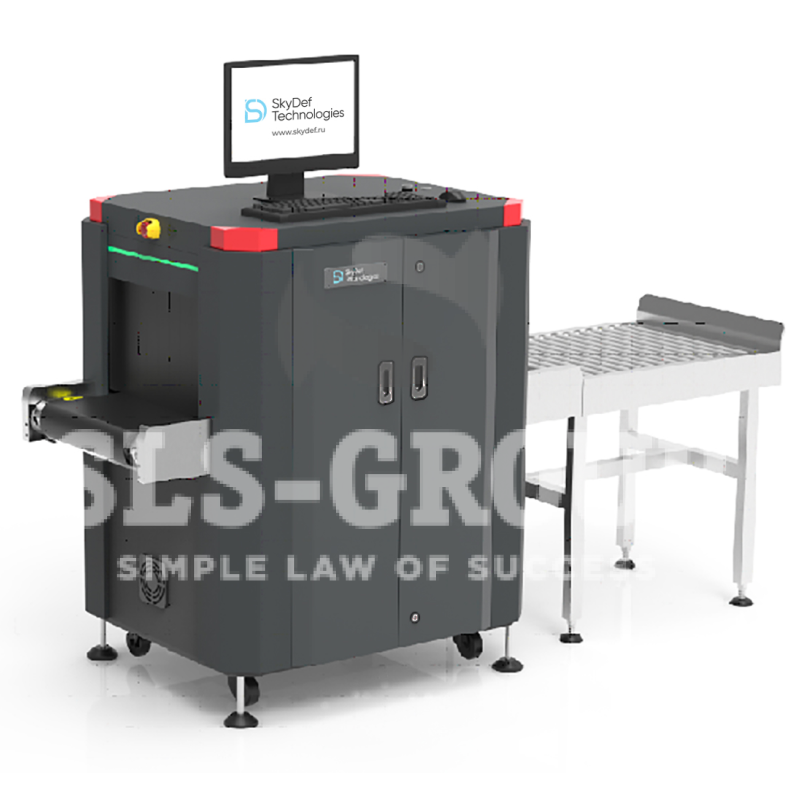

X-ray television installation for inspection of luggage and goods SDT 5030 S
Modern, compact and lightweight single-view 3D X-ray television installation, designed specifically for quick and efficient screening of bags, carry-on luggage, parcels and other items
Features SDT 5030 S
- Innovative 3D scanning technology with a palette of 7 colors allows you to detect well-hidden objects
- Compact size and low weight. Fits through most doorways, ideal for use in tight spaces or outdoor events
- Convenient and ergonomic operator panel interface
- Built-in function for identifying suspicious objects based on artificial intelligence
- Accurate separation of materials into organic, mixed, inorganic
- Windows-based software ensures high performance and stable operation
Innovative 3D scanning technology
Function for highlighting suspicious objects
An assistant that allows the release of dangerous, flammable substances, explosives or drugs
Ability to select images in a 4-color or 7-color palette
Main technical characteristics of the X-ray television installation SDT 5030 S
| Specifications | ||
| Installation size, mm (L x W x H) | 1374* x 835 ±5 x 1182** | |
| Tunnel size, mm (W x H) | 510 x 315 ±10 | |
| X-ray direction | Bottom-up, side | |
| Penetration on steel, mm | 34-36 | |
| Conveyor belt speed, m/s | ≥0.2 | |
| Maximum distributed load on the conveyor, kg | 150 | |
| Color palette | Choice of: 4 or 7 colors | |
| Separation of objects by atomic mass | Availability | |
| Maximum power consumption, kW | no more than 0.7 | |
| System weight, kg | no more than 360 | |
| Number of projections | One | |
| 3D function | Eat | |
| Maximum contrast on copper wire, mm | 0.08-0.1 | |
| Standard size | Compact | |
| Conveyor height above floor level, mm | 708 | |
| Power supply | 220V±10% 55±5 Hz, with grounding | |
| Operating temperature | 0°С – +50°С | |
* – The length is indicated subject to the zero position of the conveyor belt tensioner. The tensioner stroke is no more than 30mm.
** – The height is indicated from the transport wheels of the installation to the upper plane of the RTU. The travel of stationary legs is no more than 50mm.
SDT 5030 S equipment:
- X-ray television installation – 1 pc.
- LCD monitor 24” – 1 pc.
- Operator control panel – 1 pc.
- Operational documentation, passport (form)
Additional options available to order:
- Input/output roller table 0.5 m
- Input/output roller table 1 m
- Surveillance video cameras built into the RTU
- Intelligent subsystem for automatic stop/start of the conveyor belt (extends the service life of the installation and saves energy)
- Artificial intelligence-based subsystem for monitoring operator attention (vigilance / fatigue / operator absence from the workplace)
- Monitor with touch control
- Keyboard/mouse kit
- Voltage stabilizer
- UPS
- Operator's desktop
