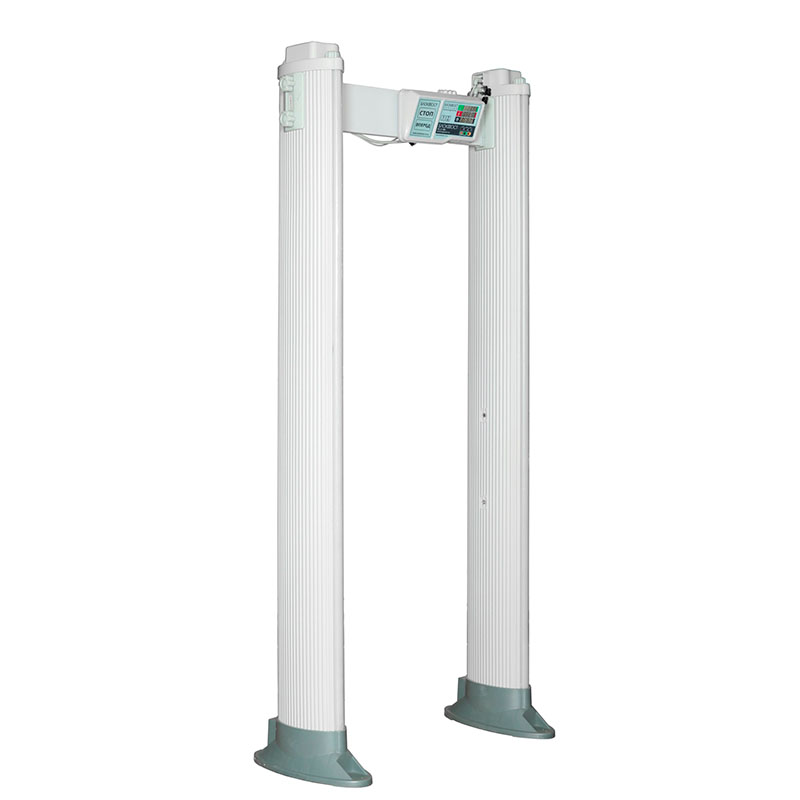

Arched metal detector BLOKPOST RS X 400 M K (4/2)
MODEL ROCKPOST RS X 400 M K (4/2). This model has a HEAVY-DUTY CASE and a DUST AND LIGHT PROTECTION LEVEL IP 65, which allows you to operate the metal detector in almost any weather conditions. The all-new powerful multi-functional microprocessor makes it easy to detect and discriminate metal. The metal detector BLOKPOST RS X 400 M K (4/2) is equipped with the latest function - an event recorder with an SD card. The presence of “dry contacts”, as well as two basic methods of connecting to the network (right, left) and connection from above (optional) have already become traditional advantages of BLOKPOST metal detector models. To count the number of people passing (at the entrance and exit) through the metal detector, a unique technology for transmitting an infrared signal is used through the use of innovative transceiver IR sensors. An accessible control unit interface, a high degree of safety, universal applicability, high sensitivity, a wide detection range, insensitivity to interference, protection from dust and moisture, anti-vandal protection (heavy-duty housing), the ability to operate for 24 hours in an intelligent mode with simultaneous sound and light alarms, high quality, efficiency and excellent technical characteristics - all these parameters are at the most modern world level. Metal detectors BLOKPOST RS X 400 M K (4/2) are harmless to the human body. A low intensity magnetic field is used, which is safe for people with pacemakers, hearing aids, pregnant women, etc.
Purpose
The BLOKPOST RS X metal detector is designed for use in government agencies, educational institutions, medical institutions, factories, business centers and other places that require ensuring the safety of people.
Transport packaging protects the equipment from damage that may occur during delivery of the goods to the client. Ensures the preservation of the appearance of equipment during loading and unloading operations, transportation, storage, as well as attachment to vehicles.
Equipment
The metal detector BLOKPOST RS Z 400 M K (4/2) comes complete with:
- power cable (5 m) – 1 pc.
- adapter for the top connection of the metal detector – 1 pc.
- fasteners for the control unit – 2 pcs.
- fasteners for antenna panels – 4 pcs.
- set of fasteners for installation to the floor – 4 pcs.
- remote control for setting up the metal detector – 1 pc.
- crossbar – 1 pc.
- instructions for use/technical passport – 1 pc.
Connecting to a computer
The BLOKPOST X series models now have a unique function for monitoring, configuring and managing several hundred metal detectors using a single server. This function is necessary for transmitting and analyzing data on the number of passes, sensitivity settings, and number of alarms. Information can be received in real time from one to several hundred metal detectors.
The IRA-ENGINEERING company has developed its own software, with the help of which it is possible to control the security of such large objects as stadiums, ice palaces, concert halls, airports, train stations, etc. using multiple operators.
Integration into an access control system
Thanks to the presence of an output for controlling actuators, BLOKPOST RS X 400 M K (4/2) metal detectors can be integrated into an access control system. Metal detectors can be installed in conjunction with airlock cabins, airlocks, turnstiles, tripods, and automatic doors.
When a person passes through a metal detector with a prohibited item, a light and sound indication is triggered; the information is transmitted through a wired connection to a turnstile (airlock cabin, automatic door, etc.), which blocks further movement of the person. If there are no prohibited items, the turnstile will allow access.
Parallel operation
Metal detectors BLOKPOST RS X 400 M K (4/2) during parallel operation are recommended to be located at a distance of 50 cm from each other. This equipment has several operating frequencies, which reduces mutual interference between adjacent metal detectors and provides the possibility of parallel operation. It is recommended to set different operating frequencies for metal detectors located next to each other.
The distance between metal detectors operating in parallel depends on the sensitivity level and frequency combination. The minimum distance acceptable for operation is determined based on the conditions at the installation site.
| Passage dimensions (mm) LxWxH | 2000x720x280 |
| External dimensions (mm) | 2300x1130x500 |
| Net weight (kg) | 65 |
| Gross weight (kg) | 75 |
| Number of independent detection zones | 2, 4 |
| Operating temperature range | -20 to +60 °C |
| Number of levels of overall sensitivity adjustment | 100 |
| Independent sensitivity adjustment for each zone | Yes |
| Number of sensitivity adjustment levels for each zone | 400 |
| Selectivity | Magnetic and non-magnetic metals |
| Degree of object localization | Accurate |
| Non-volatile memory for saving settings | Yes |
| Self-diagnosis test mode | Yes |
| Passage width, mm | 720 |
| Number of standard programs | 72 |
| Dust and waterproof housing coating | Yes |
| Dust and waterproof design | IP 65 |
| Pass counter | Yes |
| Maximum pass counter value | 99,999 |
| Alarm counter | Yes |
| Maximum value of alarm counters | 99999 |
| Alarm light notification | Yes |
| Presence of LEDs in antenna panels | Yes |
| Alarm sound notification | Yes |
| Number of alarm tones | 99 |
| Alarm output for controlling third party equipment (dry contacts) | Yes |
| Number of passwords to change settings | 1 |
| Four digit password | Yes |
| Throughput, person/min | 60 |
| Number of IR sensor trigger modes | 4 |
| Remote control | Yes |
| Autonomous operation | yes, option |
| Number of metal detectors when used in parallel (number of operating frequencies) | 50 |
| Increased noise immunity (minimum distance between models, cm) | 50 cm |
| Anti-vibration protection | Yes |
| Power (W) | ≤ 12 W |
| Voltage (V) | 110-240V/50Hz |
| Average service life | 10 years |
| Guarantee | 1 year |
