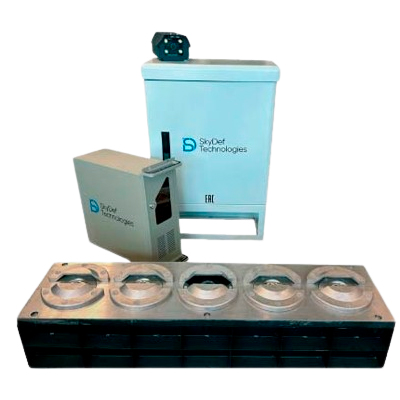

Stationary vehicle underbody inspection system CONTROL-S
Description
Stationary vehicle underbody inspection system "CONTROL-S" - a solution for monitoring vehicles at security facilities
The stationary vehicle underbody inspection system “CONTROL-S” is designed for checking vehicles at checkpoints. It provides a detailed image of the vehicle's underside as it passes and helps detect foreign objects, hidden devices and structural changes.
The system is used at transport infrastructure facilities, industrial enterprises, sensitive areas and administrative buildings. It allows for quick inspection of vehicles without stopping the traffic flow and increases the efficiency of control at checkpoints.
The complex helps security services identify potential threats and record inspection images for subsequent analysis. "CONTROL-S" is suitable for continuous use at the entrances of facilities with increased safety requirements.
- The stationary inspection system for the underside of cars "CONTROL-S" is designed specifically for organizing high-quality, fast and most importantly safe inspection of the underbody of cars at checkpoints
- The real-time system provides high-quality, detailed color images of the underbody of the vehicle and helps the operator quickly detect hidden threats: contraband, weapons, drugs and others
- The speed of vehicle inspection is about 10 seconds. By removing the operator's workplace from the vehicle inspection site, additional employee safety is ensured
- The equipment includes a subsystem for recognizing state registration plates of cars
| Scanner size, mm (L x W x H) | 1100 x 280 x 205 |
| Scanner weight, kg | 105 |
| Maximum load on the scanner, Tn | 50 |
| Scanner operating temperature | -35 C to +60 C |
| Operating temperature of workstation | +5 C to +60 C |
| Degree of moisture protection of the scanning module | IP68 |
| Maximum speed of the inspected vehicle with the license plate recognition function enabled, km/h | 30 |
| Maximum speed of inspected vehicles without using the license plate recognition function, km/h | 70 |
| operating system | Windows 7 (at least) |
| Hard disk capacity (HDD), TB | 1 |
| Number of USB connectors, pcs. | 4 |
| Number of network LAN interfaces, pcs. | 2 |
| Monitor | LCD 21.5” (1920 x 1080 px) |
| The presence of dry contacts for connecting additional devices (barriers, bollards, anti-ram devices, etc.) | Yes |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
