LowCam VI110 vehicle underbody inspection system
Vehicle underbody inspection systems “LowCam VI110” is a mobile solution from Advanced Detection Technology for inspecting the body of passenger cars and heavy-duty vehicles at facilities with increased safety requirements.
This is a new generation of vehicle underbody inspection systems, providing unique inspection capabilities for high and repetitive vehicle traffic.
In the basic version, it is equipped with a function for recognizing the front and rear warning signs of the vehicle, integrated with the database, allowing you to compare a previously scanned image with a real-time image, and in case of a potential threat, notify the workstation operator located at a safe distance.

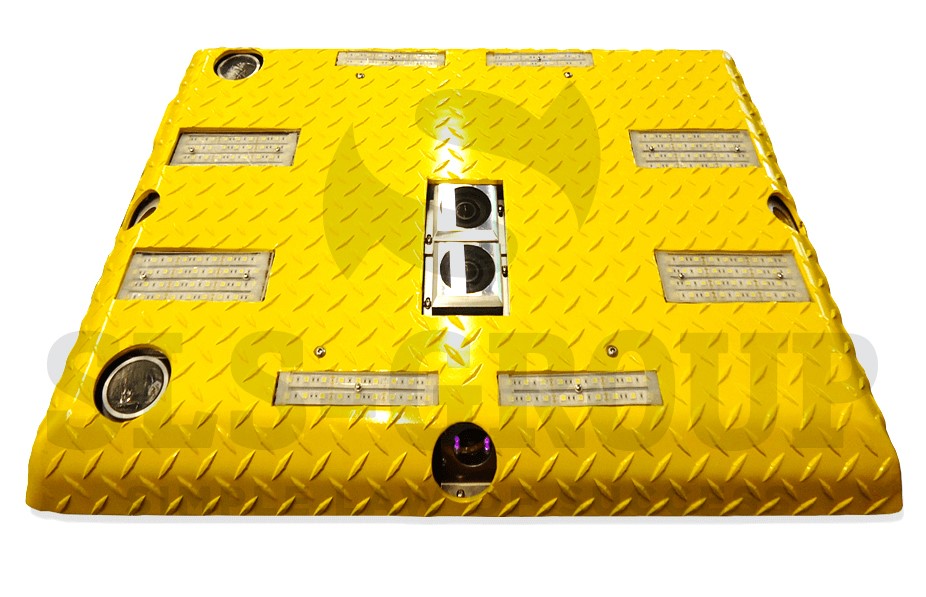

The scanning module is equipped with six compact high-resolution color video cameras. Like younger models, the scanning module body is made of aircraft-grade aluminum, can withstand loads of up to 20 tons and weighs only 30 kilograms.
The deployment time of the LowCam VI110 vehicle underbody inspection system by one person is less than 3 minutes.
The entire kit is housed in two compact and durable Pelican cases.
Performance characteristics (TTX): Car underbody inspection system LowCam VI110
| Monitor characteristics, resolution | Touchscreen 21“ 1920x1080 pixels, with protection against solar glare |
| Transport speed | up to 15 km/h |
| System deployment time | up to 180 sec. |
| Maximum load on the scanning module | up to 20 tons |
| Backlight | Ultra-bright LED, infrared for detection system |
| Remoteness of the workstation operator | up to 100 m |
| Number of stored videos | more than 75,000 |
| IP degree of protection | 67 |
| Scanning module operating temperature | -34℃ to +60℃ |
| Control module operating temperature | from 0℃ to + 40℃ |
| Total weight of the set | 73.6 kg. |
