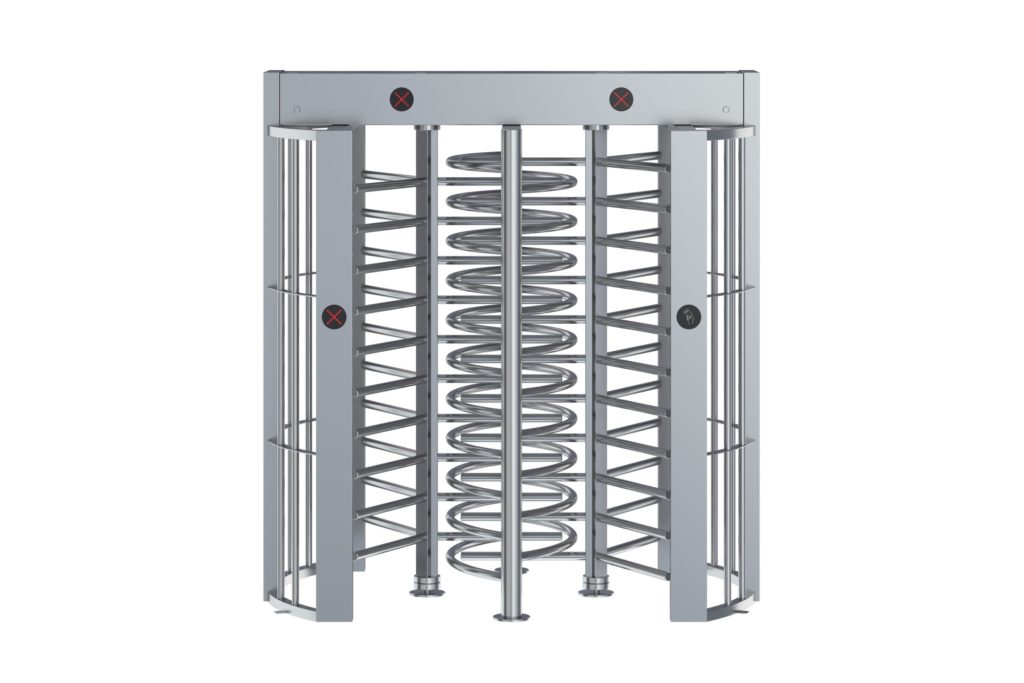

Turnstile FULL HEIGHT BLOCKPOST ST 2 series SPECTRUM Z
The double-pass full-height turnstile BLOKPOST is used to control visitor access to the facility. Ensures simultaneous two-way movement of people entering and exiting in any direction. Eliminates crawling under the rotor blades and jumping over the rods.
The turnstile is controlled by connecting to an access control system, built-in readers, or a remote control. The model of a full-height turnstile with a gate has a high throughput capacity (20-35 people/min), reverse blocking (reverse rotation of the leaves when the rotor is turned is prohibited), an automatic function for unlocking the rotor in emergency situations or power failure, and reduced energy consumption. And the technical capabilities of the device ensure correct integration into access control systems of any manufacturer.
Dimensions and operation of the turnstile
The full-height two-pass turnstile SPECTRUM is made of AISI 304 stainless steel, has anti-vandal protection and corrosion resistance. The turnstile can be used indoors or outdoors (under a canopy).
Transportation of a full-height turnstile is carried out in containers, railway cars, pressurized cabins of aircraft or by road. The device must be protected from moisture, dust and various precipitation, observing the rules for transporting goods. After transit of the turnstile, it must be kept indoors for at least 12 hours at an air temperature of -40 to +55 C and relative humidity up to 90%.
When arranging the entrance area, full-height turnstiles are recommended to be placed parallel to each other in one line, either at a distance from each other or close to each other.
Advantages of the turnstile
The full-height two-pass turnstile SPECTRUM has dust and moisture protection properties (IP 54) and is resistant to external climatic factors. Thanks to the high degree of protection, the model can be used indoors or outdoors (under a canopy) in any weather.
- Anti-vandal design - durable construction made of SUS 304 stainless steel with sealed welds.
- Installation indoors or outdoors under a canopy - IP 54 dust and splash protection, no corrosive parts.
- 4 HID/EM-Marin/Mifare card readers and 2 four-button remote controls (wired and wireless) included. Two-color light signaling of direction/passage prohibition.
- “Evacuation/anti-panic” mode - remote unlocking of the rotors from the control panel for evacuation, automatic locking with the possibility of mechanical opening of the passage (4 locks) in case of power failure.
- Independent operation + integration into a security system via the Wiegand 26 interface. Built-in motherboard with relay outputs and 12-volt power supply to external equipment (metal detectors, fingerprint and temperature scanners, video recorder, intercom). Removable mounting hatches.
- Convenient transportation - collapsible rotors reduce packaging size. Wood sheathing prevents damage.
