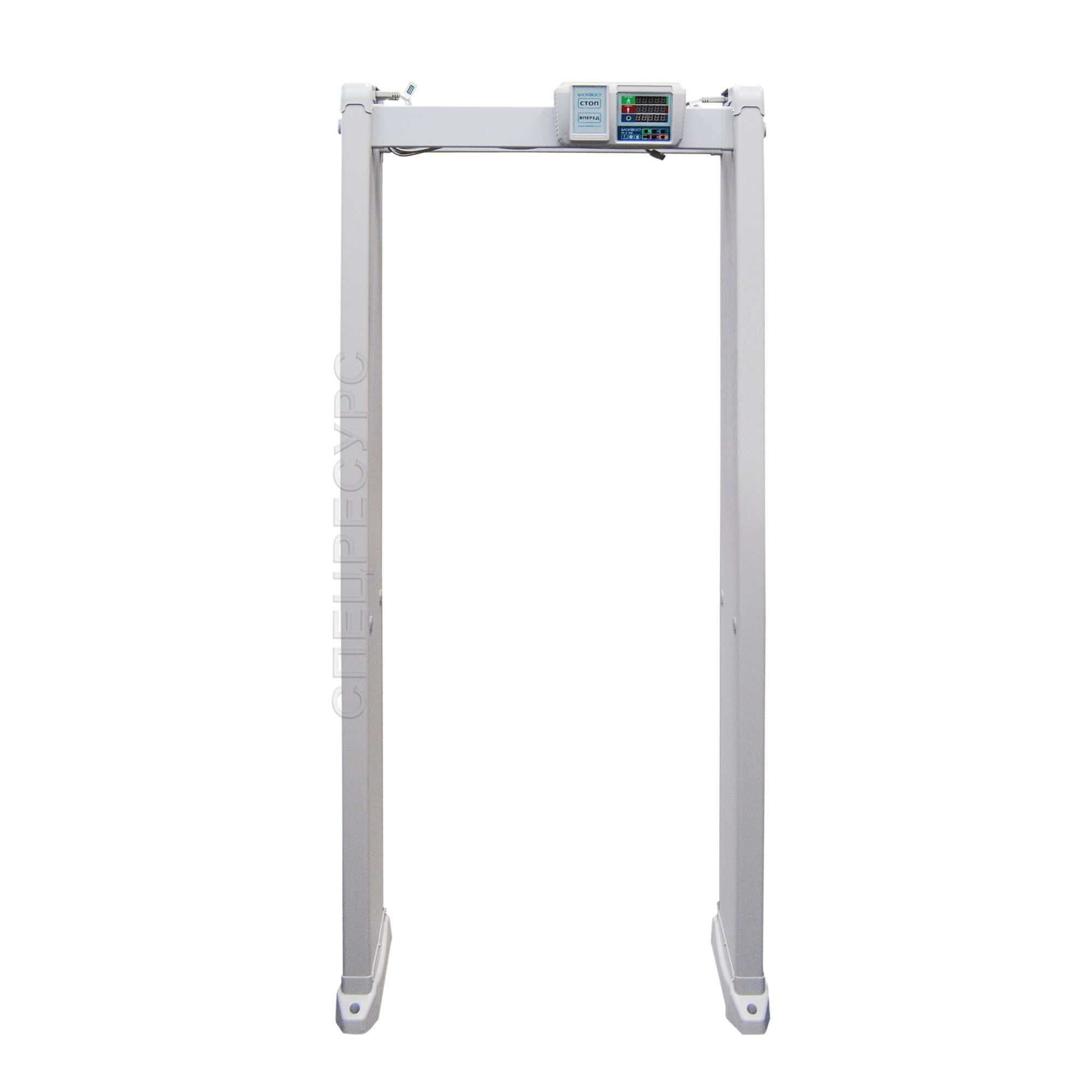

Arched metal detector BLOCKPOST PC Z 100
The BLOCKPOST RS Z 100 model is the most inexpensive metal detector in its series, very easy to use and configure. The new microprocessor model makes it easy to detect and detect metal. The presence of “dry contacts”, as well as three ways to connect to the network (right, left, top) have already become traditional advantages of BLOKPOST detector models. To count the number of people passing (input/output) through the detector, infrared signal transmission technology is used using transceiver IR sensors. An accessible control unit interface, a high degree of safety, universal applicability, high sensitivity, a wide detection range, insensitivity to interference, the ability to operate for 24 hours in an intelligent mode with simultaneous sound and light alarms, high quality, efficiency, excellent technical characteristics - all these parameters are at the most modern world level. BLOKPOST RS Z 100 metal detectors are harmless to the human body. A low-intensity magnetic field is used, which is safe for people with pacemakers, hearing aids, and pregnant women.
Purpose
The BLOKPOST RS Z 100 metal detector is designed for use in government agencies, educational institutions, medical institutions, factories, business centers and other places that require ensuring the safety of people.
Dimensions of the metal detector
Transport packaging protects the equipment from damage that may occur during delivery of the goods to the client. Ensures the preservation of the appearance of equipment during loading and unloading operations, transportation, storage, as well as attachment to vehicles.
External dimensions 2230x850x430 mm
Passage dimensions 2030x750x335 mm
Net weight 40 kg
Gross weight 48 kg
Equipment
The following is supplied with the BLOKPOST RS Z 100 metal detector:
- power cable (5 m) – 1 pc.
- adapter for the top connection of the metal detector – 1 pc.
- fasteners for the control unit – 2 pcs.
- fasteners for antenna panels – 4 pcs.
- set of fasteners for installation to the floor – 4 pcs.
- crossbar – 2 pcs.
- remote control – 1 pc. (optional)
- instructions for use/technical passport – 1 pc.
Integration into an access control system
Thanks to the presence of an output for controlling actuators (dry contacts), BLOKPOST RS Z 100 detectors can be integrated into an access control system. Detectors can be installed in conjunction with airlock cabins, airlocks, turnstiles, tripods, and automatic doors.
When a person passes through the Z 100 CHECKPOINT with a prohibited item, a light and sound indication is triggered; the information is transmitted through a wired connection to the turnstile (gateway cabin, automatic door, etc.), which blocks the person’s further movement. If there are no prohibited items, the turnstile will allow access.
Parallel operation
During parallel operation, it is recommended to place BLOKPOST RS Z 100 metal detectors at a distance of 50 cm from each other. This equipment has several operating frequencies, which reduces mutual interference between adjacent detector frames and provides the possibility of parallel operation. It is recommended to set different operating frequencies for detectors located next to each other.
The distance of RS detectors operated in parallel depends on the sensitivity level and frequency combination. The minimum distance acceptable for operation is determined based on the conditions at the installation site.
Operating principle
The operation of RS Z 100 metal detectors is based on the use of an electromagnetic field. One of the walls (antennas) of the device sends a signal towards another wall, which receives this signal and then returns it back. As you know, electromagnetic waves do not pass through metal objects. The device records the time the signal is reflected; when the time interval changes, the alarm device is triggered. A multi-zone metal detector has the ability to accurately locate one or more metal objects on the human body.
| Number of independent detection zones | 1 |
| Number of sensitivity adjustment levels | 200 |
| Selectivity | Magnetic and non-magnetic metals |
| Degree of object localization | Accurate |
| Dust and waterproof coating | Yes |
| Non-volatile memory for saving settings | Yes |
| Self-diagnosis test mode | Yes |
| Pass counter | Yes |
| Alarm counter | Yes |
| Alarm light notification | Yes |
| Alarm sound notification | Yes |
| Presence of LEDs in antenna panels | Yes |
| Four digit password | Yes |
| Passage width, mm | 750 |
| Alarm output for controlling third party equipment | Yes |
| Number of passwords to change settings | 1 |
| Independent sensitivity adjustment | Yes |
| Touch control | Yes |
| Number of alarm tones | 10 |
| Bandwidth | 60 people/min |
| Autonomous operation | Yes, option |
| Number of IR sensor trigger modes | 3 (“Only for entry”, “Only for exit”, “For entry and exit”) |
| Number of metal detectors when used in parallel (number of operating frequencies) | 50 |
| Increased noise immunity (Minimum distance between models) | 50 cm |
| Operating temperature range | -20°C – +55°C |
| Power consumption | ≤ 12 W |
| Electrical voltage | 110-240V/50-60Hz |
| Passage dimensions, mm | 2000x750x480 |
| External dimensions, mm | 2200x930x480 |
| Net weight, kg | 43 |
| Gross weight, kg | 52 |
| Average service life | 10 years |
| Guarantee | 1 year |
