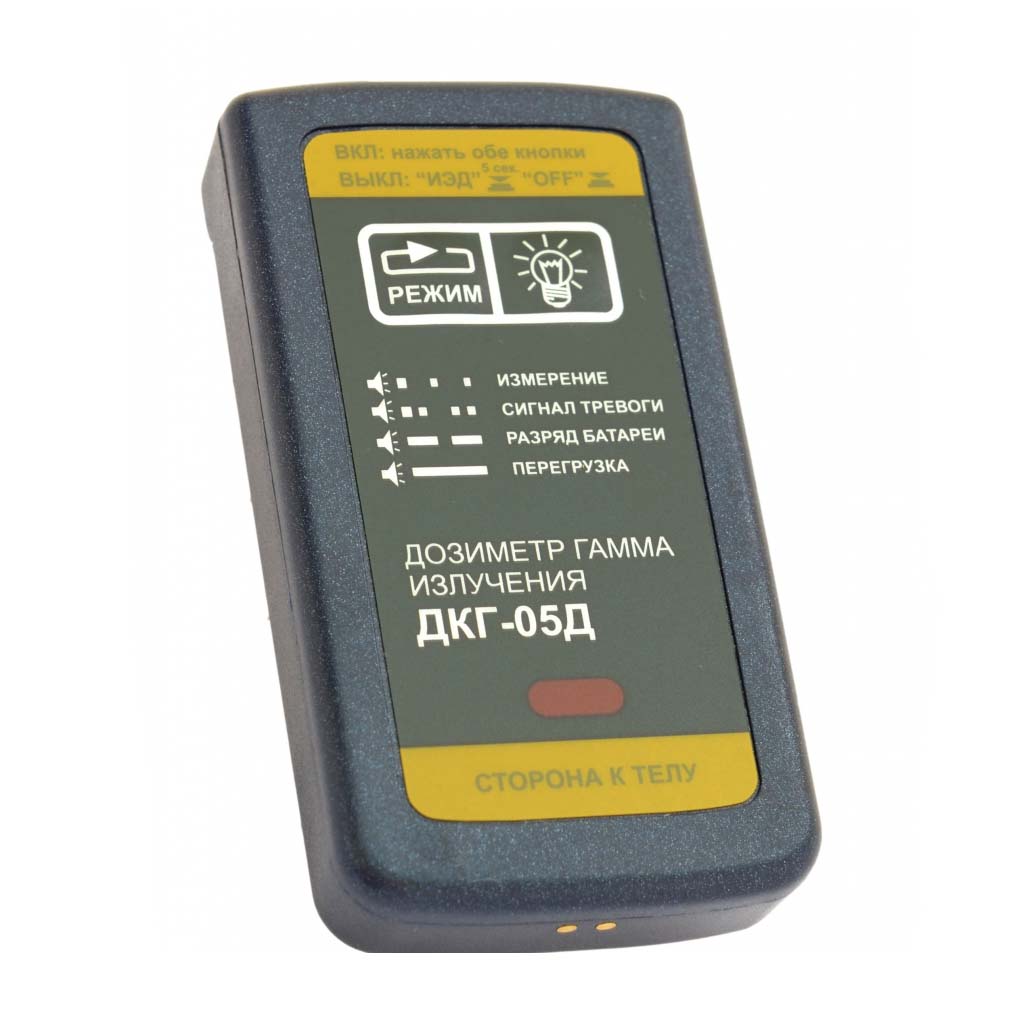

Individual gamma radiation dosimeter DKG-05D
Individual gamma radiation dosimeter DKG-05D is a modern portable device designed for continuous monitoring of gamma radiation levels. This device is specially designed for individual use and provides accurate data on the radiation situation in the environment.
Key Benefits
Measurement Accuracy:DKG-05D is equipped with highly sensitive detectors, which ensures accurate measurements of gamma radiation levels.
Compact and Portable:Due to its small size and light weight, the dosimeter is easy to carry, providing continuous monitoring of the radiation situation.
Wide Measurement Range:The instrument is capable of measuring gamma radiation over a wide dose range, making it suitable for use in a variety of environments.
Ease of Use:The dosimeter has a convenient and intuitive interface, which makes it accessible to a wide range of users.
Reliability and Durability:The device is designed for use in a variety of environments, including extreme temperatures and humidity.
Application
The DKG-05D dosimeter is widely used in environmental monitoring, in enterprises, medical institutions and research centers to monitor radiation levels. It is also an important tool for the personal protection of specialists working in conditions of increased background radiation.
| Detectors | silicon semiconductor |
| Measuring range DKG-05D: – IED – MIED |
0.1 µSv ÷ 15 Sv 1 µSv/h ÷ 10 Sv/h |
| Energy range | 0.05 ÷ 3.0 MeV |
| Limit of permissible basic relative measurement error: – IED of gamma radiation – MIED of gamma radiation |
±(15+10/H)* % ±(15+40/H)* % |
| Sound and light alarm | exceeding system alarm thresholds; exceeding the indication limits IED – 42.9 Sv and MIED – 42.9 Sv h-1 negative self-diagnosis results; battery discharge. |
| Sound alarm | not less than 80 dB at a distance of 40 cm |
| Light signaling | flashing LED |
| Dose rate measurement time | from 1 to 255 sec (decreases with increasing dose rate) |
| Memory | 1900 results |
| Storage period of information in the dosimeter memory when discharged and without a power source | 10 years |
| Setting thresholds | throughout the entire measurement range of IED with a step of 1 μSv and DER with a step of 1 μSv h-1 |
| Type of connection between the reader and computer: – reader device US-05-01 (US-05B-01) – reader UZS-01D |
USB Ethernet |
| Exchange of dosimeter information with the reading device | infrared channel |
| Operating temperature range | minus 20 ÷ +45°С |
| Humidity | up to 98% at +35°C |
| Degree of protection of the dosimeter DKG-05D | IP65 |
| Continuous operation time: – no battery charge – without replacing the battery |
at least 600 hours not less than 1000 h |
| Dimensions, weight | 47x26x87 (with clip) mm, 0.07 kg (including power supply) |
| Design | Sealed case made of impact-resistant plastic with a clip for attaching to the chest pocket |
