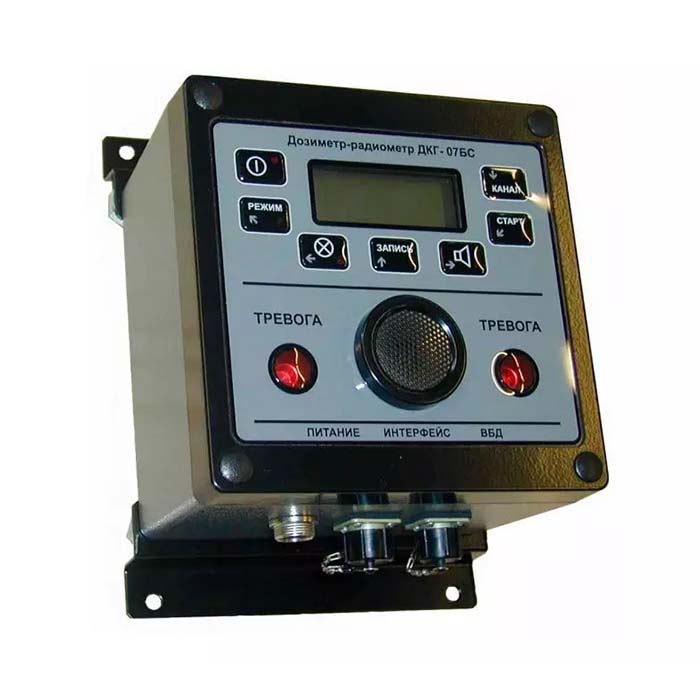

Dosimeter-radiometer DKG-07BS
Dosimeter-radiometer DKG-07BS is a multifunctional device designed to measure background radiation levels and determine the radiation dose. This instrument is designed for a wide range of applications, from environmental monitoring to radiation safety applications.
Key Benefits
High Accuracy and Reliability:DKG-07BS is equipped with modern detectors that provide accurate and reliable measurements of background radiation and radiation dose.
Compact and Portable:Thanks to its compact size and lightness, this dosimeter-radiometer is easy to transport and use in a variety of environments.
Wide Measurement Range:The device is capable of measuring both gamma radiation and alpha and beta radiation, making it a versatile tool for various monitoring tasks.
Easy to Operate:An intuitive interface and ease of use make the DKG-07BS accessible even to users without special training.
Reliability in Extreme Conditions:The device is designed to operate in a wide temperature range and in high humidity conditions.
Application
Dosimeter-radiometer DKG-07BS is ideal for environmental monitoring, radiation safety control at industrial enterprises, medical institutions and research laboratories. It can also be used for personal radiation safety of specialists working in conditions of increased background radiation.
| Measuring principle | Gas discharge meters |
| Measured quantities | Ambient dose equivalent rate (ADR) of gamma radiation Ambient dose equivalent (AED) of gamma radiation Alpha flux densities Beta flux densities |
| Measuring range | DER from 0.01 μSv/h to 10 Sv/h AED from 0.1 μSv/h to 100 Sv Alpha radiation flux densities from 0.01-1700 s-1cm-2 Beta radiation flux densities from 0.01-1700 s-1cm-2 |
| Types of alarms | Light, sound |
| Ability to set thresholds | Availability |
| Limits of the permissible main relative error of DER measurement, | ±(15+3.5/N) |
| Limits of the permissible basic relative error in measuring the b-radiation flux density | ±(20+3.5/j) |
| Limits of the permissible basic relative error in measuring the a-radiation flux density | ±(20+0.3/j) |
| Limits of permissible basic relative error of AED measurement | ±15 |
| Time to establish operating mode, min, no more | 1 |
| DC supply voltage, V | From two batteries (type R14 or C) with a nominal voltage of 1.2 V, installed inside the dosimeter or an external source of direct current with voltage from 9 V to 33 V or alternating current with voltage from 187 V to 242 V, 50 Hz |
| Mean time between failures, h | 10000 |
| Average service life, years | 10 |
| Operating operating temperatureoC | -40 to +60 |
| External interfaces | — RS-232 |
| Degree of protection against moisture and dust | IP66 according to GOST 14254-2015 |
