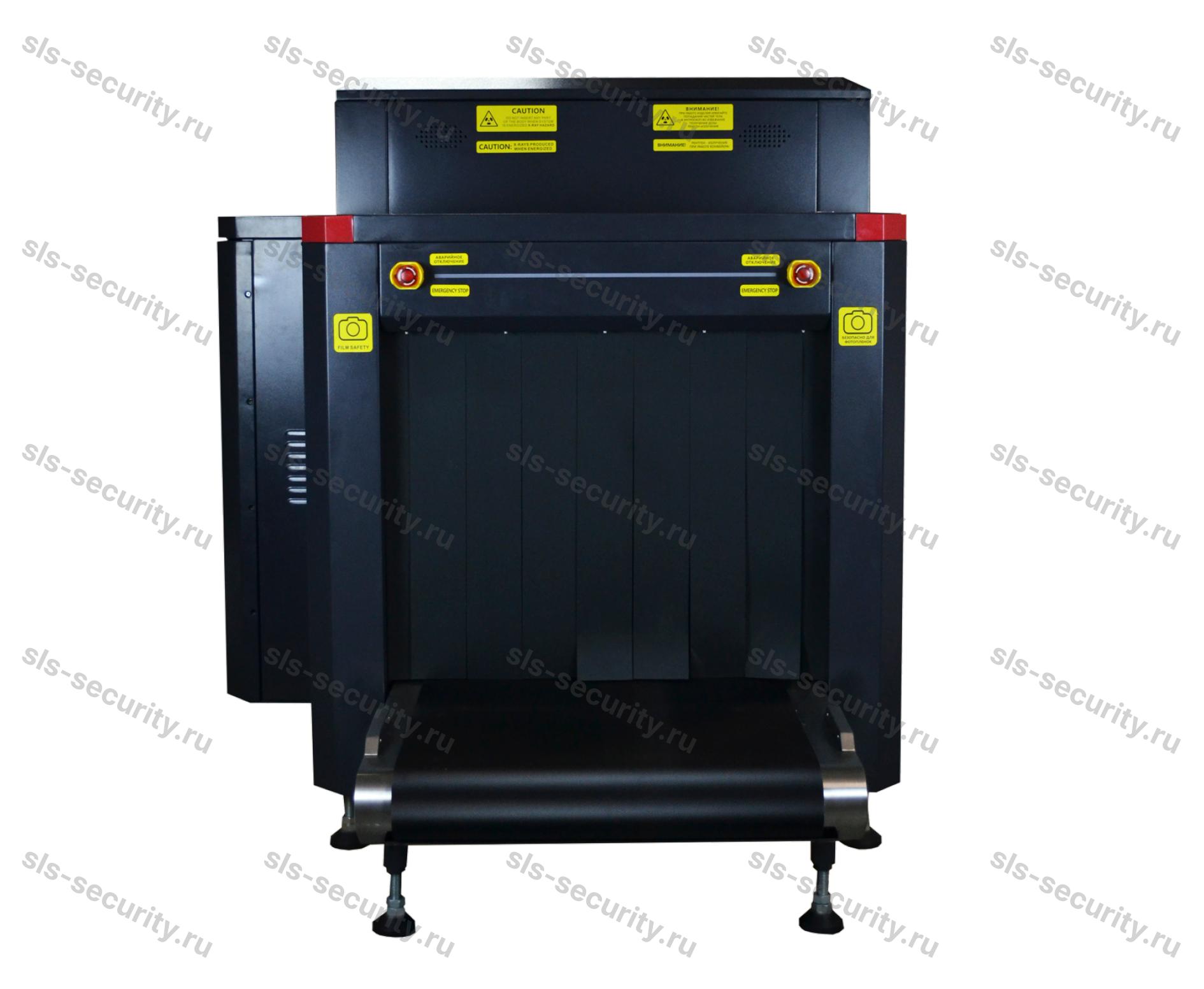

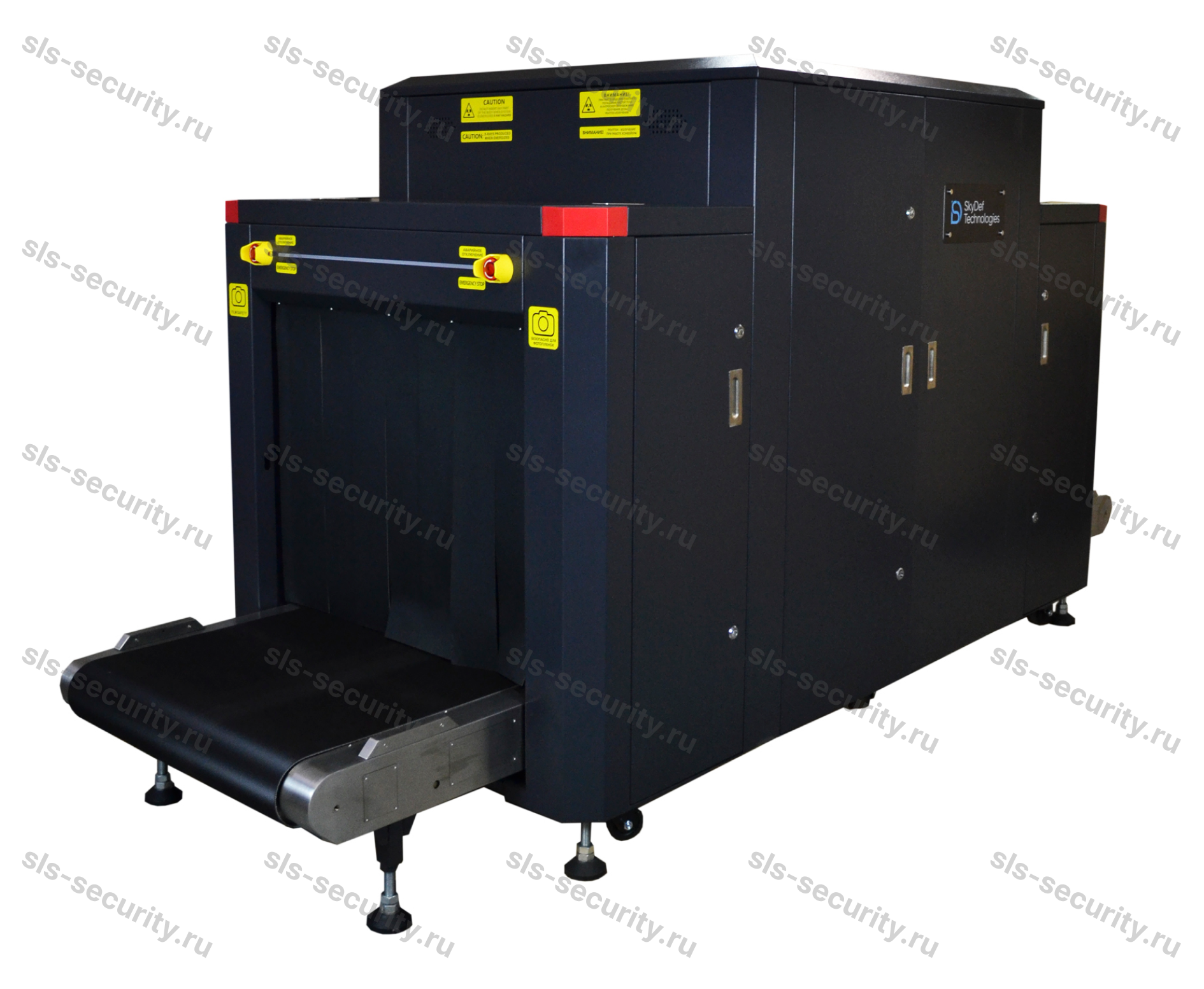

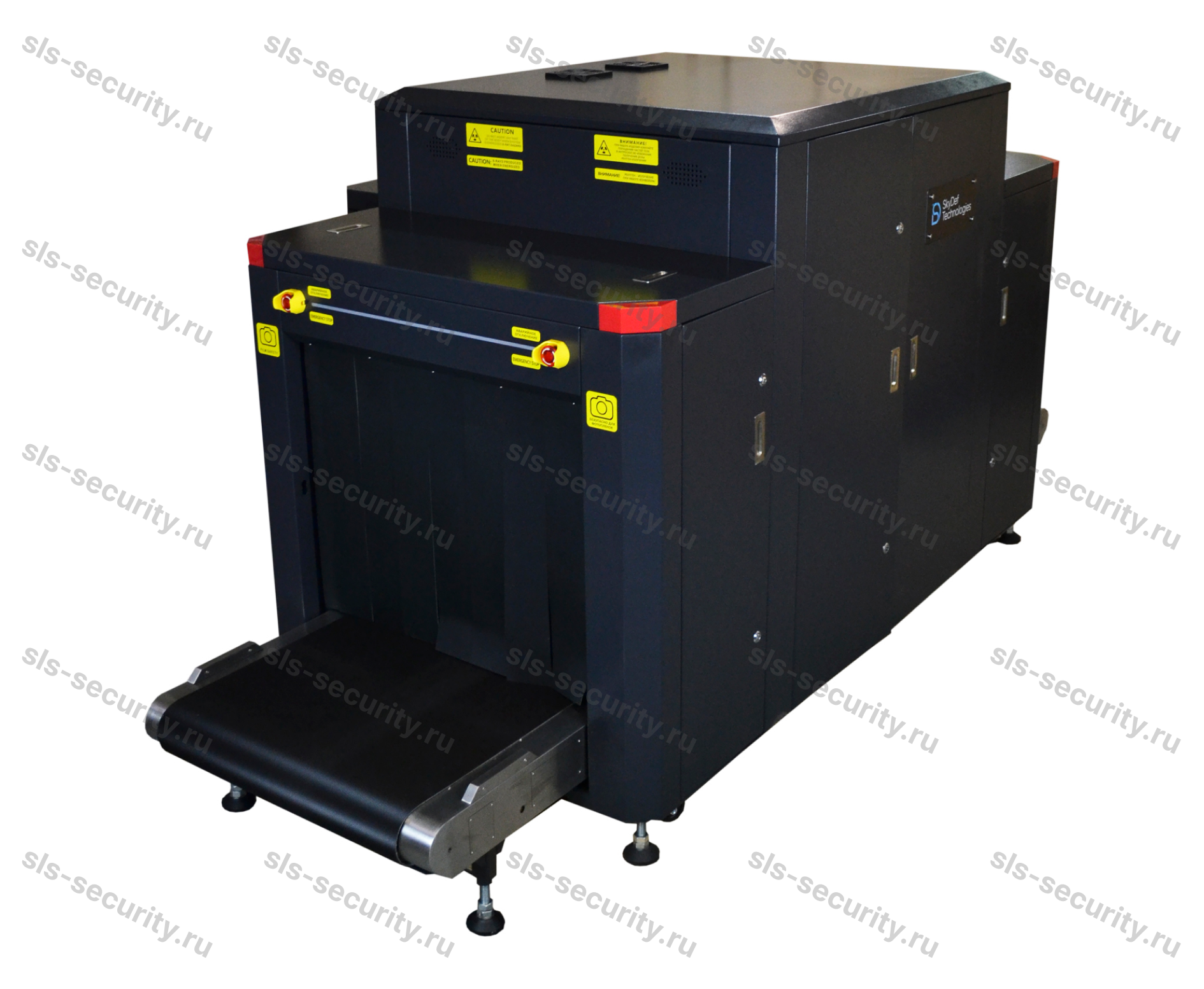

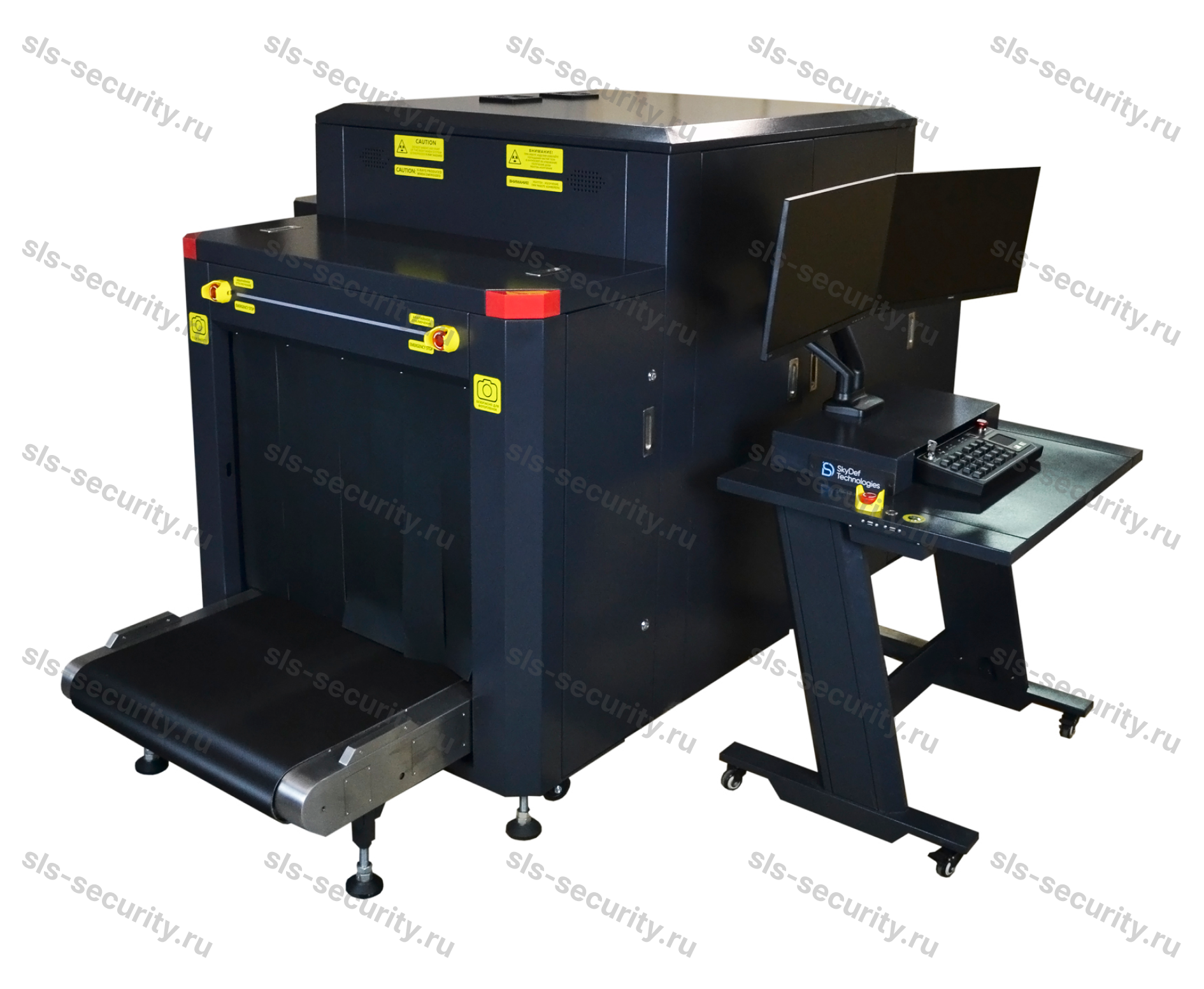

X-ray television installation for inspection of luggage and goods SDT 8065 D
Modern, ergonomic, two-projection X-ray television installation with a lower conveyor position. Provides the highest image detail, suitable for hand luggage, luggage and other large items
Features SDT 8065 D
- The dual-generator unit allows scanning objects both vertically and horizontally simultaneously, thereby providing the operator with unsurpassed inspection quality and a complete absence of dead spots. Suitable for high traffic areas.
- Convenient software interface and ergonomic operator control panel.
- Innovative scanning technology with a palette of 7 colors.
- More than 30 image processing functions.
- Accurate separation of materials into organic, mixed, inorganic.
- Built-in function for identifying suspicious objects based on artificial intelligence.
- Windows-based software ensures high performance and stable operation.
Two projections on one monitor. Possibility of switching modes for displaying scans on the monitor in horizontal or vertical scan.
Equipment SDT 8065 D:
- X-ray television installation – 1 pc.
- Curved LCD monitor 34” – 1 pc.
- Operator control panel – 1 pc.
- Operational documentation, passport (form).
Additional options available to order:
- Input/output roller table 0.5 m;
- Input/output roller table 1 m;
- Surveillance video cameras built into the RTU;
- Intelligent subsystem for automatically stopping/starting the conveyor belt (extends the service life of the installation and saves energy);
- Replacing a curved 34" monitor with two standard 24" monitors;
- Keyboard/mouse set;
- Voltage stabilizer;
- UPS;
- Operator's desktop.
Features SDT 8065 D
Function for highlighting suspicious objects
An assistant that allows the release of dangerous, flammable substances, explosives or drugs
Ability to select images in a 4-color or 7-color palette
"Only organic"
"Mixed only"
"Inorganic only"
Main technical characteristics of the X-ray television installation SDT 8065 D
| Specifications | ||
| Installation size, mm (L x W x H) | 3040* x 1387 ±5 x 1451** | |
| Tunnel size, mm (W x H) | 810 x 653 ±10 | |
| X-ray direction | Top-down, side | |
| Penetration on steel, mm | 32-34 | |
| Conveyor belt speed, m/s | ≥0.2 | |
| Maximum distributed load per conveyor, kg |
200 | |
| Color palette | Choice of: 4 or 7 colors | |
| Separation of objects by atomic mass | Availability | |
| System weight, kg | no more than 850 | |
| Number of projections | Two | |
| 3D function | No | |
| Maximum contrast on copper wire, mm | 0.1-0.13 | |
| Standard size | Average | |
| Conveyor height above floor level, mm | 301 | |
| Power supply | 220V±10% 55±5 Hz, with grounding | |
| Maximum power consumption, kW | no more than 1.2 | |
| Operating temperature | 0°С – +50°С | |
* – The length is indicated subject to the zero position of the conveyor belt tensioner. The tensioner stroke is no more than 30mm.
** – The height is indicated from the transport wheels of the installation to the upper plane of the RTU. The travel of stationary legs is no more than 50mm.
