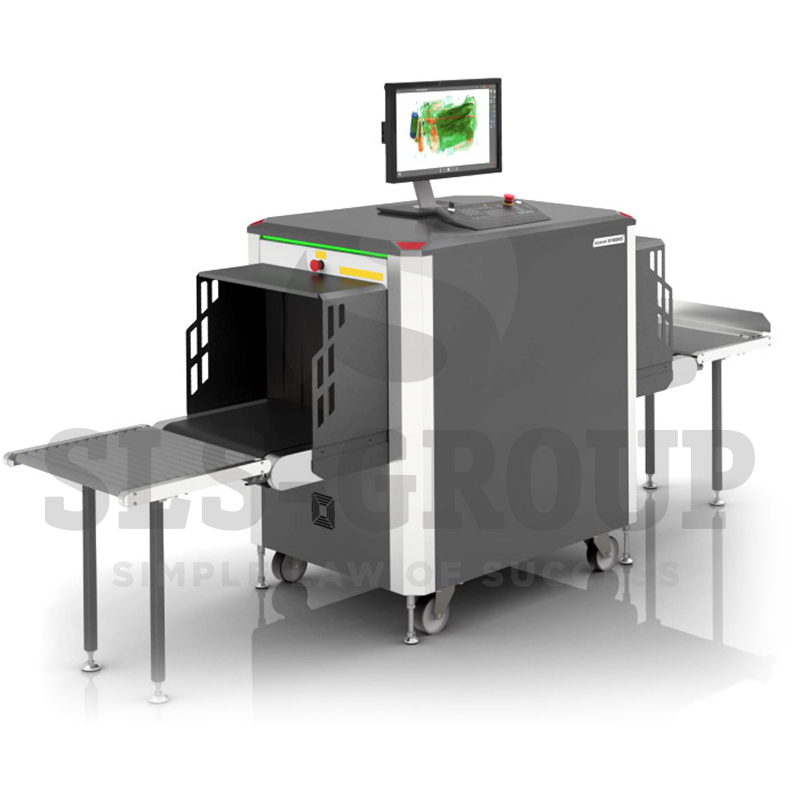

X-ray television installation (introscope) ADANI BV6040 (ADN 64)
Description
X-ray television installation ADANI BV6040 (ADN-64) - introscope for inspection of hand luggage and baggage
The ADANI BV6040 (ADN-64) introscope is designed for x-ray inspection of hand luggage, baggage and small-sized cargo. The system generates a detailed image of the contents of objects and helps identify weapons, explosives, prohibited items and other potentially dangerous objects.
The installation is used at transport infrastructure facilities, in administrative buildings, in enterprises and sensitive areas. Thanks to X-ray technology and image processing software, the operator can quickly analyze the contents of luggage and decide whether additional inspection is necessary.
The ADANI BV6040 (ADN-64) introscope is suitable for organizing inspection areas at checkpoints and facilities with increased security requirements. The system ensures stable operation under intensive use and helps improve control efficiency.
X-ray installation for inspection of luggage and goods “ADANI BV 6040”
X-ray television installationADANI BV6040designed for contactless control of hand luggage, baggage and postal items at facilities with increased security requirements. The equipment is widely used in airports, administrative buildings, security and transport facilities.

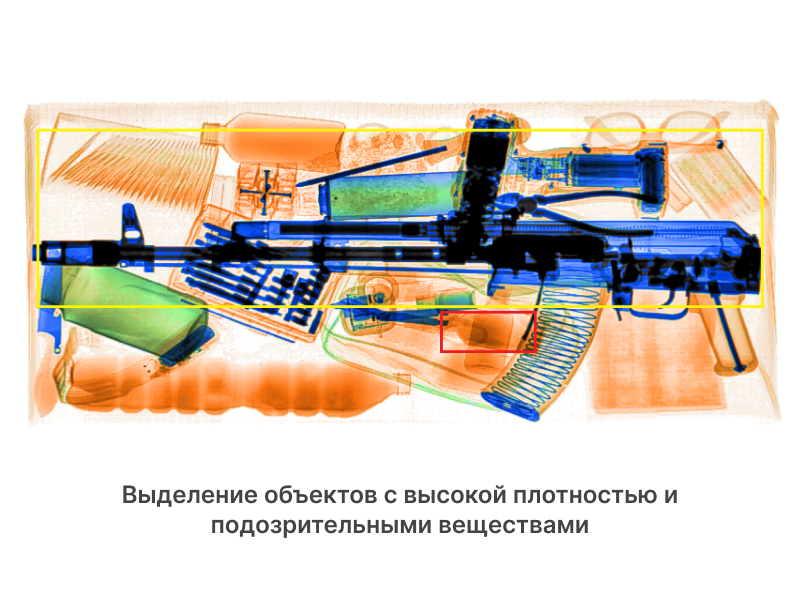

The introscope is based on dual-energy X-ray technology, which ensures accurate recognition of materials. By analyzing the atomic number of substances, the system automatically color codes objects, allowing the operator to quickly identify potentially dangerous or prohibited items.

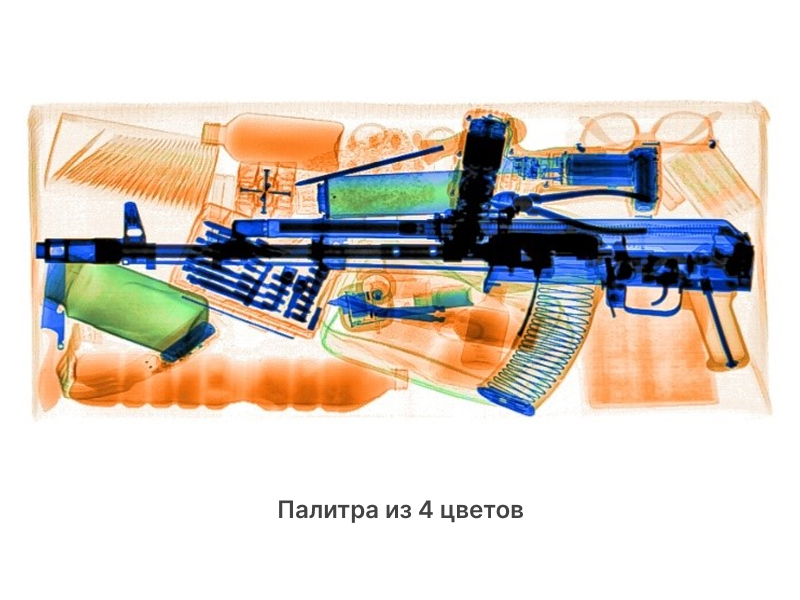

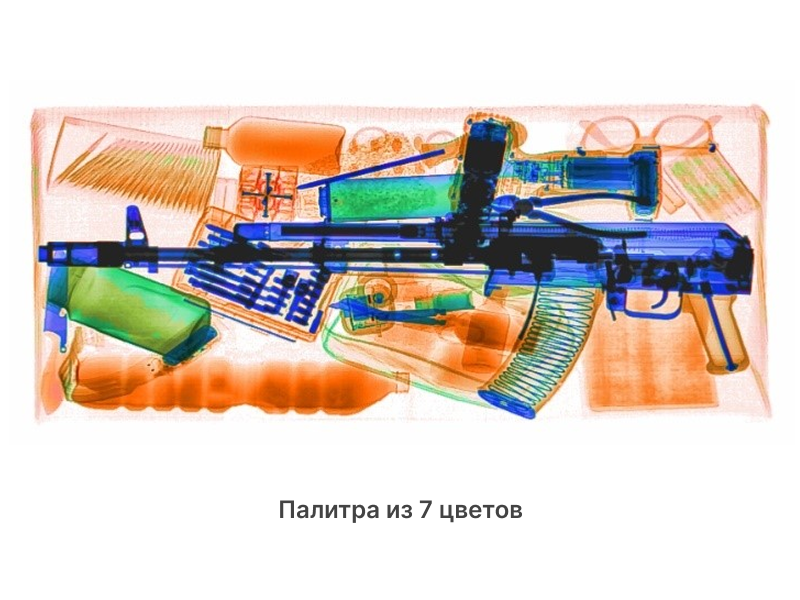

The introscope supports display of X-ray images in an expanded 3- and 7-color palette. This visualization format reduces staff fatigue during long shifts and increases the accuracy of image interpretation due to better visual separation of materials.
Production equipmentADANIIt features stable operation, an ergonomic interface and is designed for intensive use under conditions of a constant flow of inspected objects.
We know that the reliability of security is determined by two key factors: modern equipment and staff competence. By choosing our services, you will receive a truly effective security system.
Performance characteristics (TTX): ADANI BV6040
| Dimensions of the inspection tunnel (Width x Height) | 610 mm x 410 mm |
| Overall dimensions, no more (Width x Height x Length) | 845 mm x 1325 mm x 2140 mm |
| Weight, no more | 410 kg |
| Maximum distributed load on conveyor | 180 kg |
| Conveyor height from floor | 700 mm |
| Conveyor belt speed | 0.22±0.03 m/s |
| Anode voltage, standard mode | 140 kV |
| Anode voltage, high penetration mode | 160 kV |
| Film safety | up to ISO 1600 (33 DIN) |
| Dual energy technology | availability |
| Detectivity on copper wire | 0.08 mm (40 AWG) |
| Penetration ability on steel, standard mode | 30 mm guaranteed, 32 mm typical |
| Penetration ability on steel, increased penetration mode | 34 mm guaranteed, 36 mm typical |
| Image archive | At least 50,000 images |
| operating system | MS Windows EMB 8.1 Industrial, fault-tolerant configuration |
| Power supply | Single-phase network with grounding, 230 VAC ± 10% / 120 VAC ± 5% |
| Ambient temperature | 0° – +40 °С |
| Relative humidity | up to 90%, no condensation |
