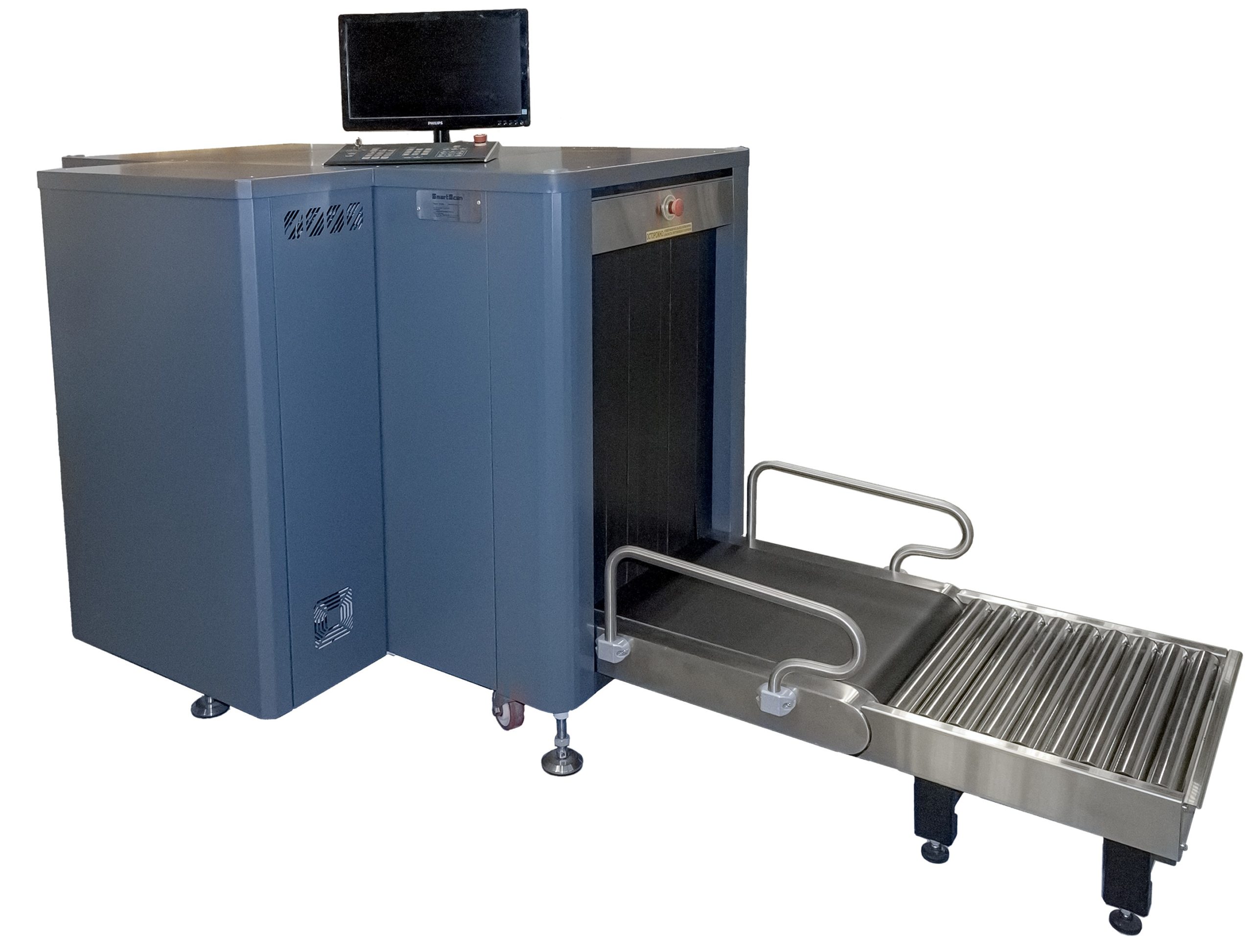

X-ray television installation (introscope) SmartScan XR 6080
The new brand of X-ray television installations “SmartScan” is developed on the basis of proven technology and adapted to the transport security requirements of the Russian Federation. It combines the quality of leading manufacturers, proven over many years, with new solutions that have improved the product and ensure compliance with strict legal regulations.
The SmartScan XR 6080 stationary installation is designed for visual, non-contact control of various objects (parcels, luggage, goods and other items).
Dual-energy technology provides automatic color separation of materials with different atomic numbers and optical densities so that the interscope operator can determine the presence of dangerous, undeclared or prohibited objects.
The installation allows you to identify weapons, explosives, drugs, and other dangerous items that pose a threat to security.
Performance characteristics (TTX): SmartScan XR 6080
|
Specifications |
||
|
Dimensions of inspection tunnel (W×H), mm |
610×810 |
|
|
Overall dimensions (L×W×H), mm |
3000 × 1200 × 1300 |
|
|
Weight, kg |
700 |
|
|
Maximum distributed load on the conveyor, kg |
180 |
|
|
Conveyor height, mm |
300 |
|
|
Conveyor belt speed, m/s |
0.22 |
|
|
Number of X-ray generators |
1 |
|
|
Radiation direction |
diagonally up |
|
|
Anode voltage, kV |
160 |
|
|
Detectivity on copper wire |
0.08 mm (40 AWG) |
|
|
Penetration ability on steel |
32 mm guaranteed |
34 mm typically |
|
Visible contrast levels, not less |
24 |
|
|
Monitor and control |
LCD monitor 21.5” (1920x1080) with a specialized keyboard or multi-touch LCD monitor 21.5” |
|
|
Image archive |
50,000 images |
|
|
Power supply |
230V±10%, 50Hz |
|
|
Power consumption, no more, kVA |
0.9 |
|
|
Ambient air temperature during operation, °C |
from 0 to + 40 |
|
|
Ambient air temperature during storage, °C |
-10 to +50 |
|
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
