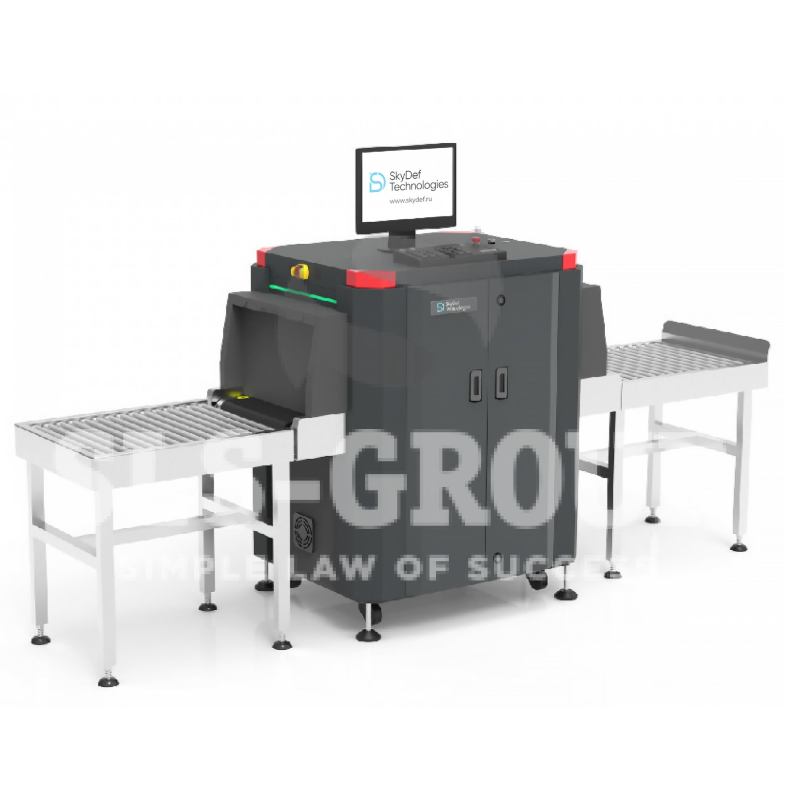

X-ray television installation for inspection of luggage and goods SDT 6550
Modern, ergonomic, single-projection X-ray television installation. provides the highest image detail. Suitable for quickly and efficiently checking hand luggage, luggage and other medium-sized items.
Features of the SDT 6550
- Suitable for high traffic areas
- User-friendly software interface and ergonomic operator control panel
- Innovative scanning technology with a palette of 7 colors
- More than 30 image processing functions
- Accurate separation of materials into organic, mixed, inorganic
- Built-in function for identifying suspicious objects based on artificial intelligence
- Windows-based software ensures high performance and stable operation
Function for highlighting suspicious objects
An assistant that allows the release of dangerous, flammable substances, explosives or drugs
Ability to select images in a 4-color or 7-color palette
Main technical characteristics of the X-ray television installation SDT 6550
| Specifications | ||
| Installation size, mm (L x W x H) | 1584* x 986 ±5 x 1382** | |
| Tunnel size, mm (W x H) | 660 x 516 ±10 | |
| X-ray direction | Bottom-up | |
| Penetration on steel, mm | 34-36 | |
| Conveyor belt speed, m/s | ≥0.2 | |
| Maximum distributed load on the conveyor, kg | no more than 165 | |
| Color palette | Choice of: 4 or 7 colors | |
| Separation of objects by atomic mass | Availability | |
| System weight, kg | no more than 560 | |
| Number of projections | One | |
| 3D function | No | |
| Maximum contrast on copper wire, mm | 0.08-0.1 | |
| Standard size | Average | |
| Conveyor height above floor level, mm | 708 | |
| Power supply | 220V±10% 55±5 Hz, with grounding | |
| Maximum power consumption, kW | no more than 0.7 | |
| Operating temperature | 0°С – +50°С | |
* – The length is indicated subject to the zero position of the conveyor belt tensioner. The tensioner stroke is no more than 30mm.
** – The height is indicated from the transport wheels of the installation to the upper plane of the RTU. The travel of stationary legs is no more than 50mm.
SDT 6550 equipment:
- X-ray television installation – 1 pc.
- Touch LCD monitor 24” – 1 pc.
- Operator control panel – 1 pc.
- Operational documentation, passport (form)
Additional options available to order:
- Input/output roller table 0.5 m
- Input/output roller table 1 m
- Surveillance video cameras built into the RTU
- Intelligent subsystem for automatic stop/start of the conveyor belt (extends the service life of the installation and saves energy)
- Artificial intelligence-based subsystem for monitoring operator attention (vigilance / fatigue / operator absence from the workplace)
- Monitor with touch control
- Keyboard/mouse kit
- Voltage stabilizer
- UPS
- Operator's desktop
