Stationary arched metal detector RADARPLUS Model F
RADARPLUS Model Fis a Russian-made stationary arched metal detector included inregister of the Ministry of Industry and Trade of the Russian Federationand completely compliantGovernment Decrees No. 1875 and No. 969(certification in the field of transport security). The device is designed for use in access control systems at strategic sites, transport, enterprises and public events where accurate and reliable verification is required.
Advantages

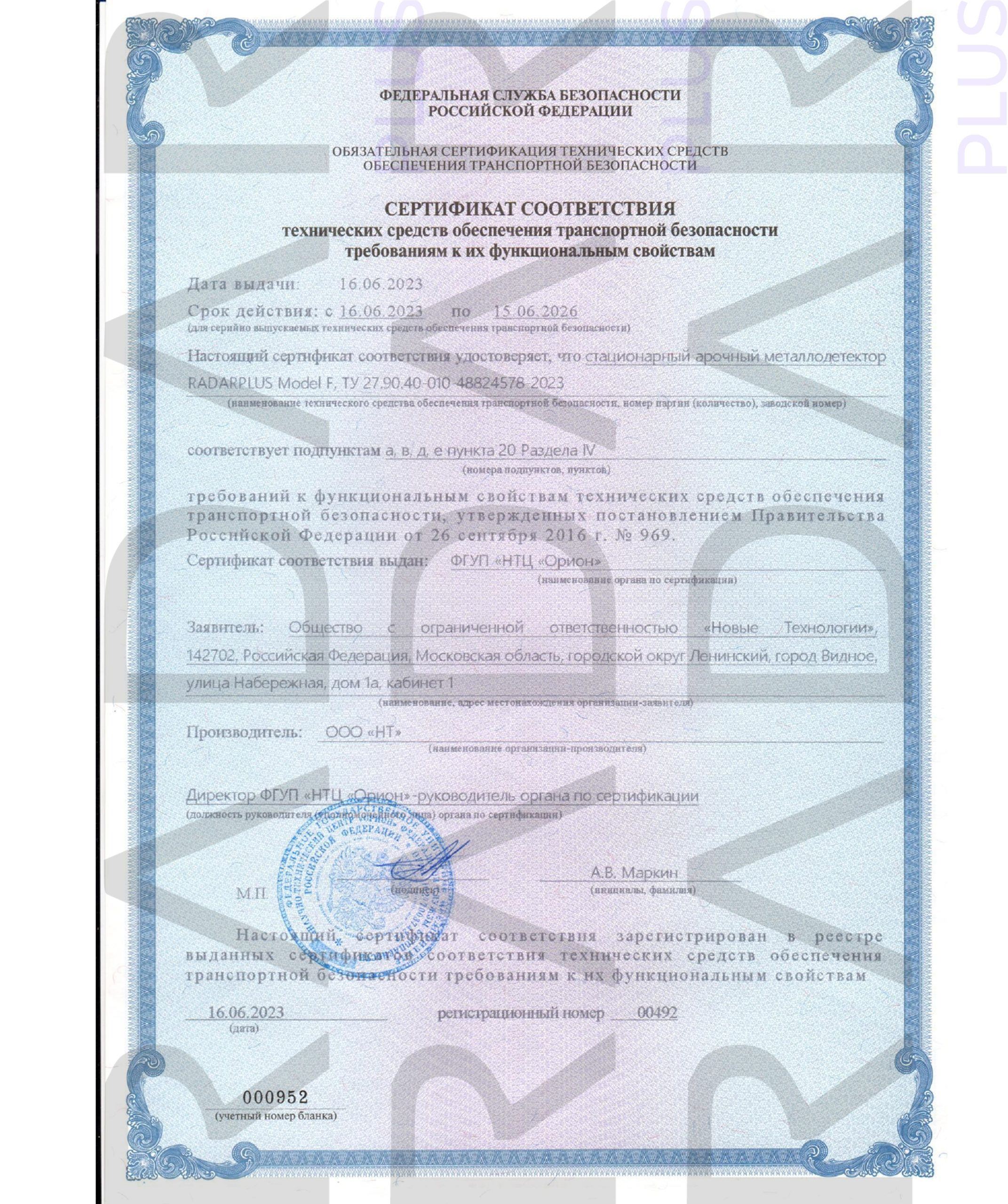

- Availability of a transport security certificate (RF PP No. 969)
- XML data transfer— convenient for integration into digital platforms
- Ethernet/Wi-Fi interface— data transfer, configuration, remote control
- Dry contacts— integration with turnstiles and access control systems
- Autonomous power supply up to 6 hours- protection against power outages and surges
- Dust and moisture protection IP65— operation outdoors in all weather conditions
- Intuitive interface- does not require special training
- Software in Russian
Details
Arch metal detectorRADARPLUS Model Fmade usinghigh-strength lightweight materials, which reduces the weight of the device, simplifies transportation and installation. The design is modular - allows for convenient maintenance and, if necessary, upgrading the system.
Data transfer is possible in XML format, which makes the metal detector compatible with modern digital systems. It is also possible to connect to a PC via Ethernet or Wi-Fi. In the event of an alarm, you can configure automatic blocking of the passage (when connected to a turnstile or access control system).
How to use
- Install the metal detector according to the instructions (indoors or outdoors).
- Connect the power supply - permanently (220V) or activate autonomous mode (UPS).
- Adjust parameters and sensitivity via interface or PC.
- Connect to an access control system or aisle control system if necessary.
- During operation, when an alarm is triggered, there is light and sound indication and signal transmission.
Why do you need this
If you need certified, reliable and easy-to-use inspection equipment -RADARPLUS Model Ffully meets these requirements. The model is certified for transport and industrial security, has integration with modern digital systems and can be included in a centralized security infrastructure.
The metal detector is suitable for:
- Railway stations, airports, metro stations
- Industrial and sensitive facilities
- Educational institutions, cultural institutions, business centers
- Events and public events
- Objects with increased control requirements
| Specifications | ||
| Passage width | 700 mm | |
| Detection zones | 12 zones | |
| Operating temperatures | -30°C to +55°C | |
| Housing protection class | IP20 - indoor use | |
| Installation location | Room | |
| Alarm indication | Light and sound | |
| Data transmission format | XML | |
| Compatibility | ACS, turnstiles, security systems | |
| Nutrition | Stationary 220 V / built-in UPS (up to 6 hours of battery life) | |
| Connection interfaces | Ethernet, Wi-Fi, dry contacts | |
| Certification | Compliance with RF PP No. 1875 and No. 969 (transport safety) | |
Equipment:
- Arch metal detector RADARPLUS Model F
- Software in Russian
- Connection kit (Ethernet, Wi-Fi module if available)
- Network adapter/UPS interface
- Mounting elements
- Operating instructions
- Packaging for transportation
Documentation

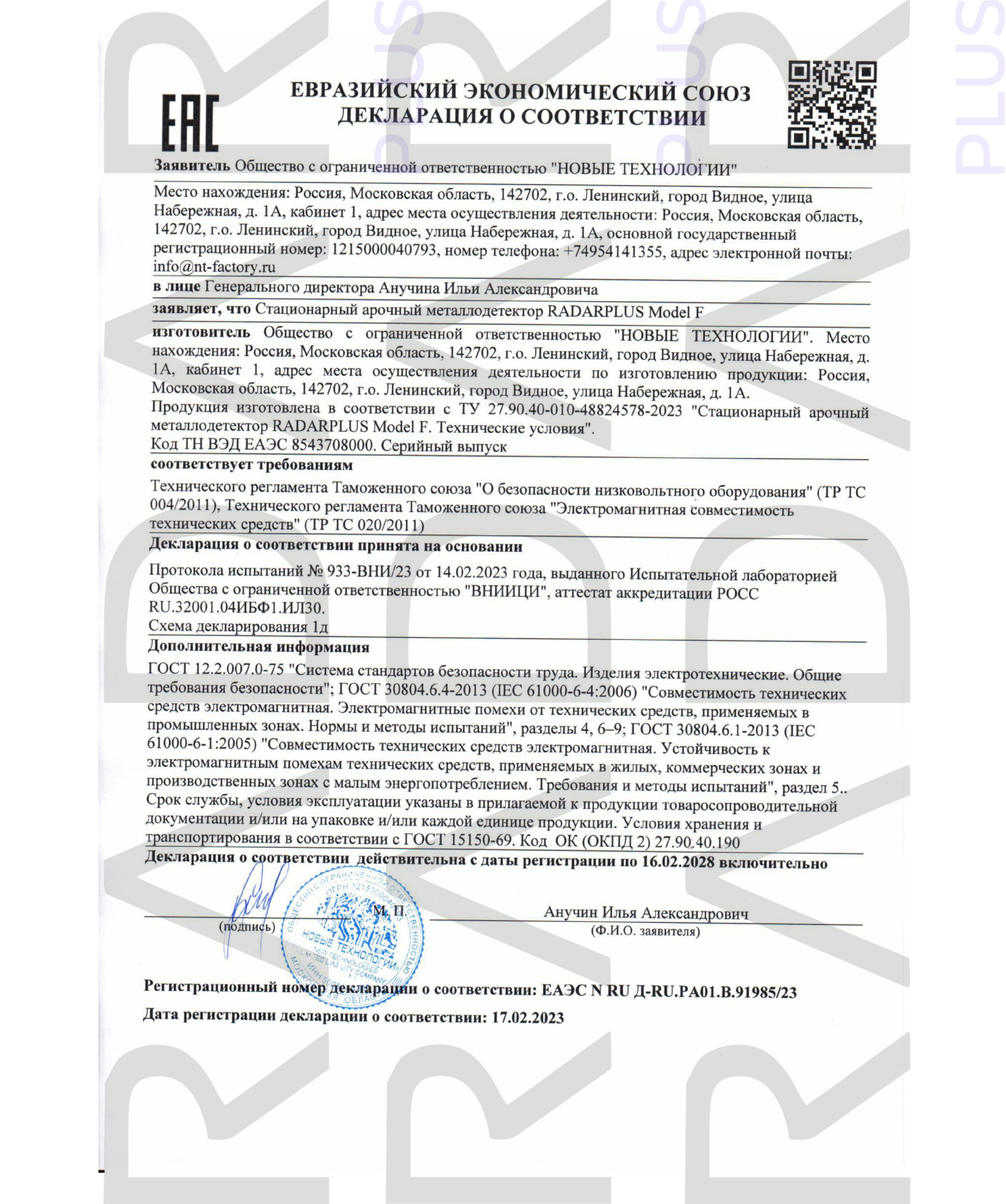

Model F Declaration.Download
