Stationary arched metal detector RADARPLUS Model RF
Stationary arched metal detector RADARPLUSRussian production. The device is equipped with touch control, multi-level sensitivity adjustment and the possibility of radiation monitoring. Suitable for facilities with high safety requirements: from transport facilities to industrial enterprises.
Benefits of Model RF

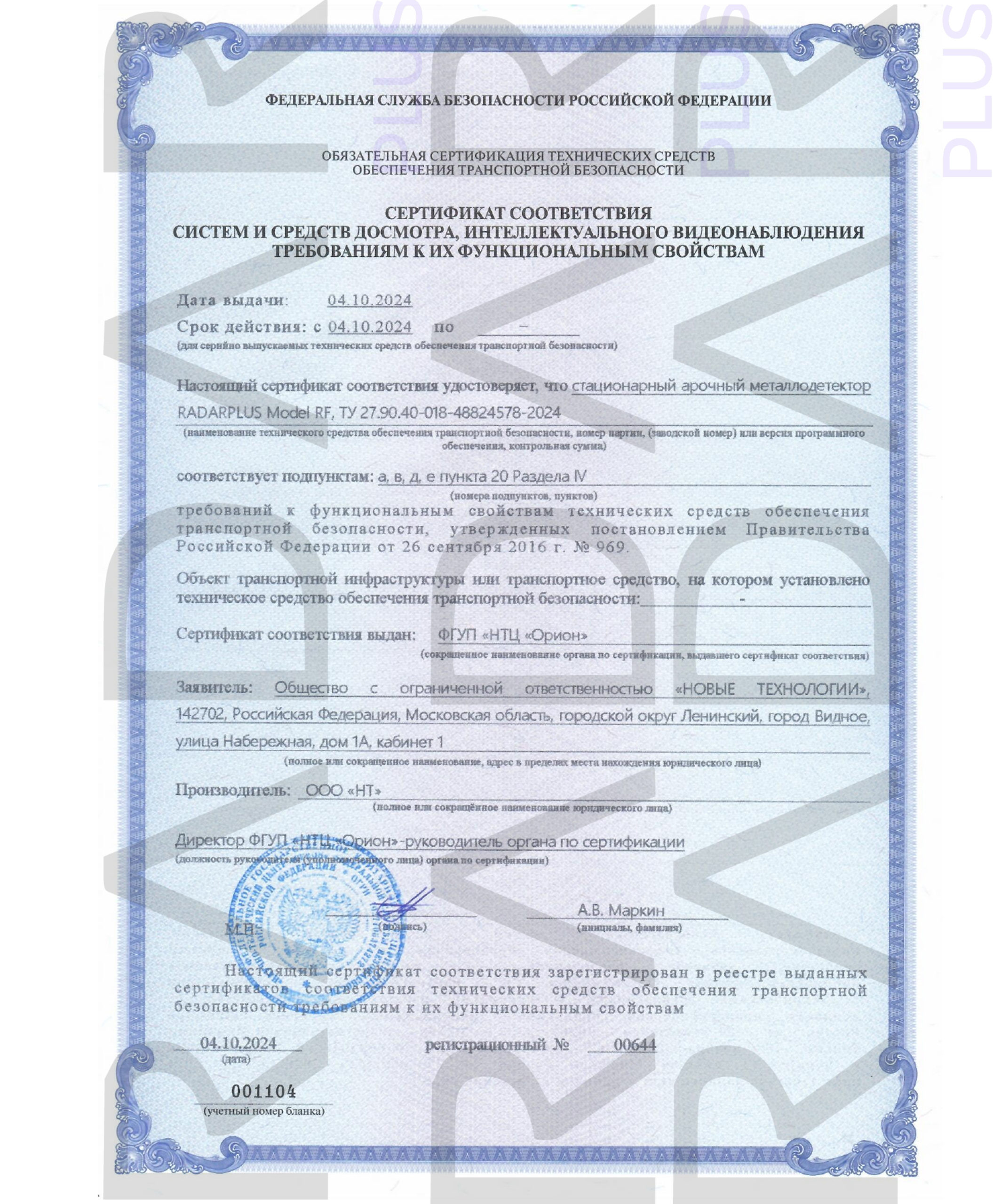

- Availability of a transport security certificate (RF PP No. 969);
- To66 detection zones— precise localization of threats;
- Radiation control— detection of sources of gamma and neutron radiation;
- Adjustable sensitivityfrom 100 to 999 levels per zone;
- Detection probability is at least 98%,false positives - no more than 2%;
- Bandwidth -up to 80 people per minute;
- Selectivity class G- allows the carrying of small objects without alarm: coins, glasses, jewelry;
- Touch screenfor management and configuration;
- Dust and moisture protection IP65— street performance;
- Temperature:from -20°C to +55°C;
- Possibility of connecting to Wi-Fi, Ethernet, access control system and UPS;
- Additional equipment— thermometry, remote control, passage counter.
Details
The arched metal detector RADARPLUS Model RF (PP969) is designed for stationary use in access systems. It can be part of an integrated security system or used stand-alone. The touch interface makes operation clear and convenient, and the modular design makes it adaptable to different installation conditions.
Arch width range -from 700 to 1000 mm, depending on the customer's needs.
The device effectively recognizesboth magnetic and non-magnetic metals,even small size.
Light and sound indication during an alarm makes the device clear to the operator.
How to use
- Install the arch at the inspection site (indoors)
- Connect power (mains or UPS)
- Adjust zoning and sensitivity on the touchpad
- If necessary, connect to a PC, access control system, turnstile
- When an intruder passes, the zone lights up red and an alarm sounds
Why do you need this
RADARPLUS Model RF (PP969)— the optimal solution for enterprises, state security agencies, transport hubs and other facilities where it is requiredmulti-level access control and increased accuracyinspection.
Thanks to modularity, intelligent configuration and additional functions, it provides:
- Increased safety for employees and visitors
- Quick adaptation to customer tasks
- Possibility of integration into a general security system
- Reliable operation even with heavy flows
| Specifications | ||
| Passage width | from 700 to 1000 mm | |
| Detection zones | from 18 to 66 | |
| Temperature | -20 to +55°C | |
| Dust and moisture protection | IP20 | |
| Installation location | room | |
| Housing material | metal + composite | |
| Sensitivity | 100–999 levels per zone | |
| Metal Detection | magnetic and non-magnetic | |
| Radiation detection | yes (gamma, neutrons) | |
| Bandwidth | ≥ 80 people/min. | |
| Detection level | ≥ 98% | |
Equipment:
- Metal detector arch RADARPLUS Model RF (PP969)
- Touch control unit
- Set of cables and fastenings
- Software (in Russian)
- User instructions
Add. options to order:
- Remote control with forced alarm function
- Temperature measurement module
- Reversible pass counter
- Wi-Fi/Ethernet interface
- Dry contacts for integration into access control systems
- Uninterruptible Power Supply (UPS)
Documentation:

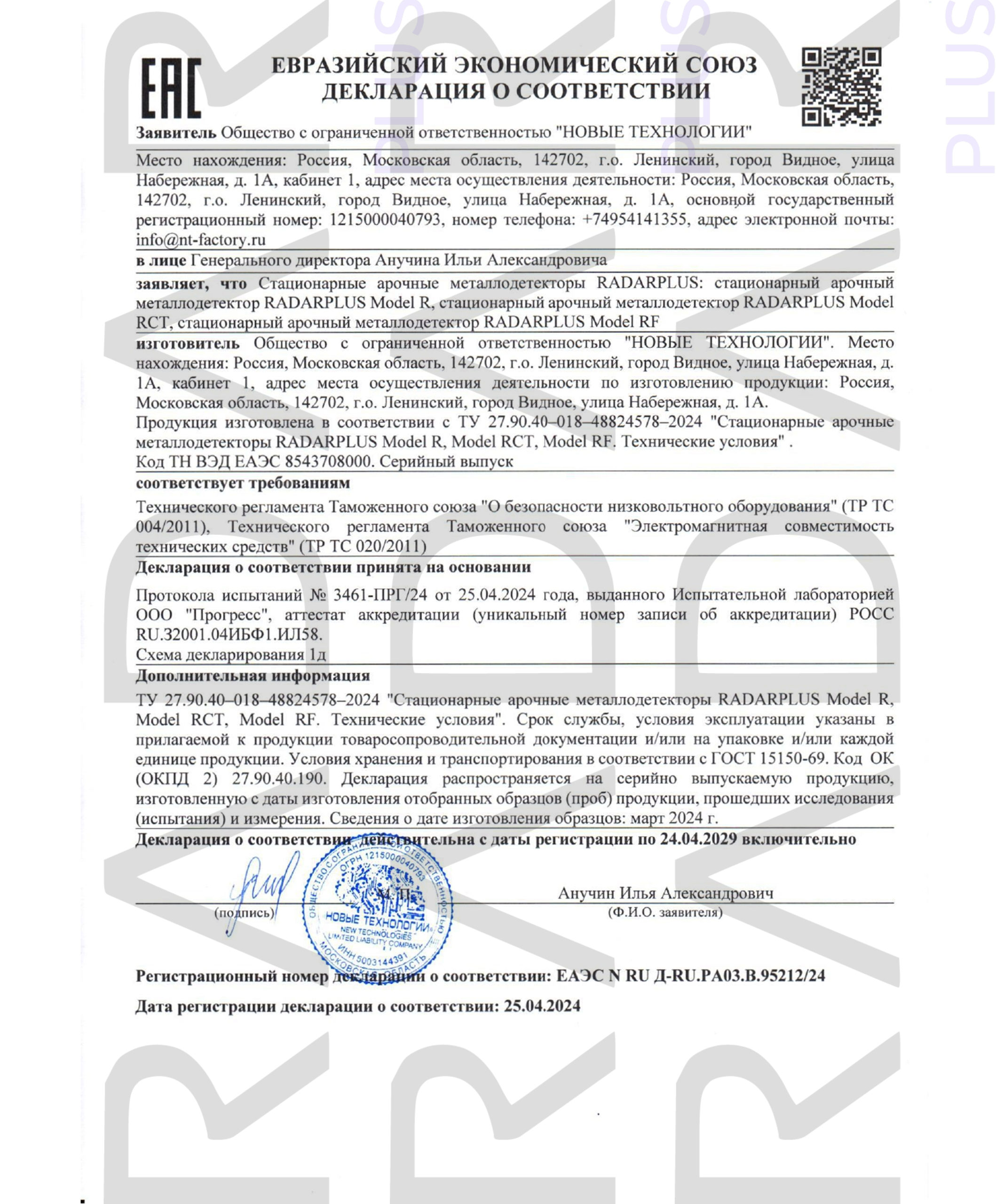

Model RF Declaration.Download
